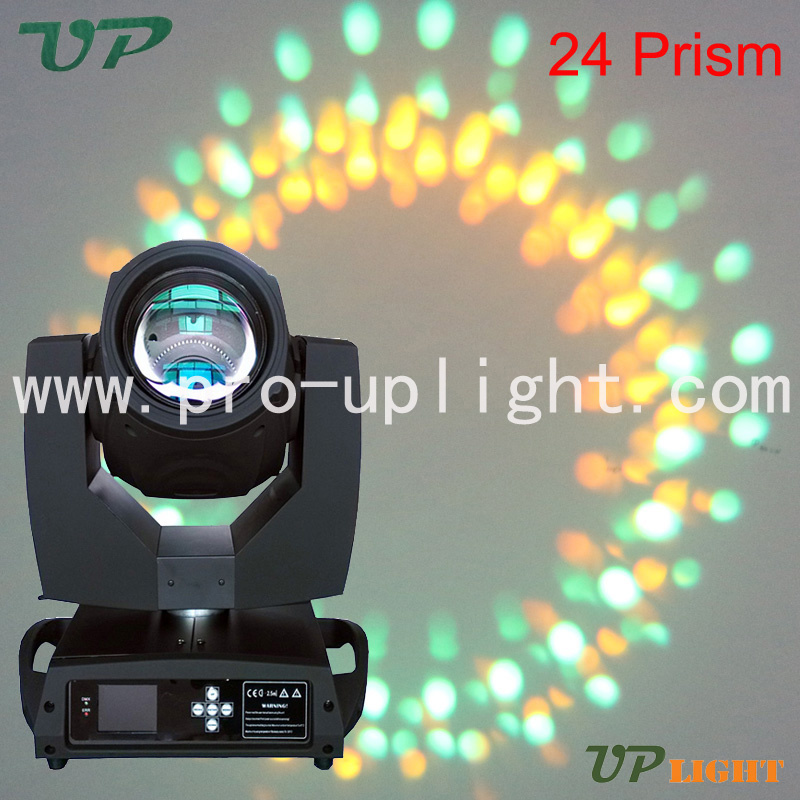

7r 230W Beam Light Moving Head Light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
POWER SUPPLIE
Input power: 110-240V 50/60 Hz
LAMP SOURCE
Discharge lamp with a short arc burner in a reflector system
- Type: Optional YODN MSD Platinum R7 230W
Philips UHP 230W
Osram Siruis HRI 230W
- Output Lamp power: 200W/230W
- Color temperature: 8, 500 K
- Average life: 2, 000 h
OPTICS
3-lens optical group combination
Focus: Electronic
Light output at 20 meters (65 feet): 59, 760 lux
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-face rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer
CONTROL AND PROGRAMMING
16/20 DMX 512 control channels
Display: LED red/blue display or LCD display
Pan/Tilt Resolution: 16 bit
Movement control: Vectorial
DMX signal connection: 3 PIN output
BODY
Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.
MOVING BODY
Travel:
- PAN = 540° - TILT = 250°
ELECTRONICS
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
"AUTOTEST" function from menu
Electronic monitoring with status error
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
Forced ventilation with axial fans.
Hanging system: With fast-lock omega clamps (1/4 turn) on the base
WEIGHT
19.5 Kg
Channel | Function |
| 16 | 20 |
| CH1 | CH1 | Color wheel |
| CH2 | CH2 | Strobe |
| CH3 | CH3 | Dimmer |
| CH4 | CH4 | Gobo wheel |
| CH5 | CH5 | Prism |
| CH6 | CH6 | Prism rotation |
| CH7 | CH7 | Retain |
| CH8 | CH8 | Frost |
| CH9 | CH9 | Focus |
| CH10 | CH10 | Pan fine |
| CH11 | CH11 | Tilt |
| CH12 | CH12 | Tilt fine |
| CH13 | CH13 | Retain |
| CH14 | CH14 | Reset |
| CH15 | CH15 | Lamp on/off |
| CH16 | CH16 | Pan/tilt speed |
| CH17 | Color wheel speed |
| CH18 | Reset |
| CH19 | Dimmer/prism/frost speed |
| CH20 | Gobo wheel speed |
