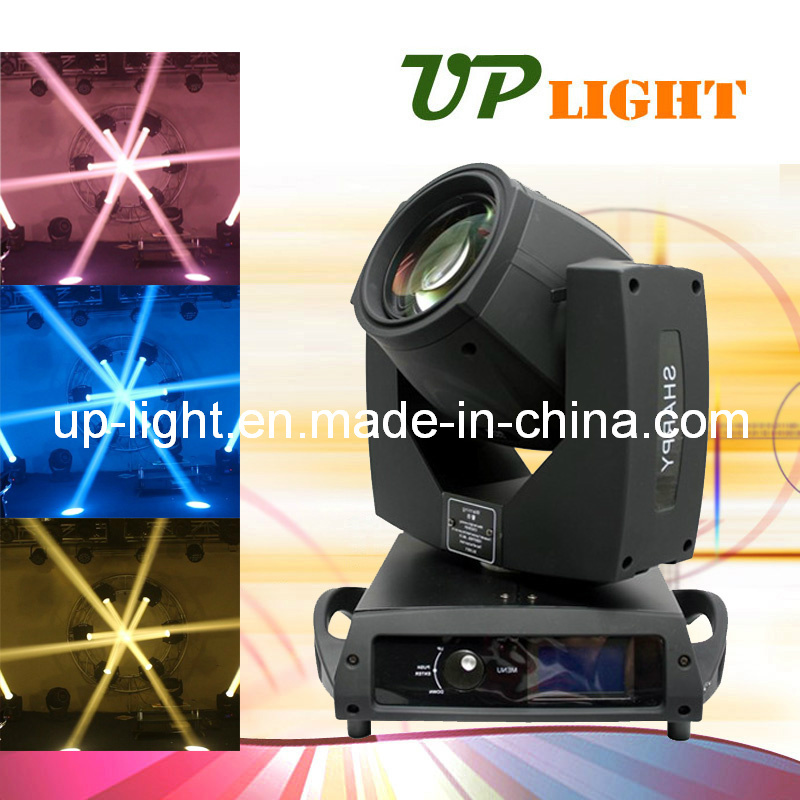

Sharpy 5r 200W Beam Moving Head Stage Light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
Input voltage: 100-240V, 50/60Hz;
Machine Power: 400W;
Light source: Philips MSD Platinum 5R with 189W;
Color system: One color wheel with14 Colors + Open. Color fitters can be changed;
Gobo system: One fixed Gobo wheel with 17 Fixed Gobos + Open;
Chaneel:18CH
Beam angle: 0° ~8 °;
Color temperature: 8500K;
Average lifetime: 2000 hours;
Lens: 3pcs PHILIPS lens group with electronics zooming 0~3.8 degree
Strobe: Support mechanical strobe & adjustable speed stobe effect;
Prism: 8-faced prism with rotation;
Frost: 0%~100% linear frost;
Control mode: DMX512 signal control with 3 pin interfaces & LCD display w;
Ballast : Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%;
Head movement: Horizontal: 540°, 8bit/16bit precision scanning with auto position correction; Vertical: 270°, 8bit/16bit precision scanning with auto position correction;
Environment temperature: -15° C ~45° C;
Shell material: Aluminum alloy composites plastic, IP20;
Package size: 523*337*511mm;
Gross weight: 19KG
Applicaiton: is suitable for concert,theater, club,disco,opera house, auditorium, T stage, vocal concert, etc.It is brighter than beam 300. It is 100% high copy Claypaky.
Channel list:
| Channel | function |
| Ch 1 | Pan |
| Ch 2 | Tilt |
| Ch 3 | Pan fine |
| Ch 4 | Tilt fine |
| Ch 5 | Pan/Tilt speed |
| Ch 6 | Dimmer |
| Ch 7 | Strobe |
| Ch 8 | Atomization |
| Ch 9 | Color |
| Ch10 | Color fine |
| Ch 11 | Gobo |
| Ch 12 | Gobo shake |
| Ch 13 | Prism |
| Ch 14 | Prism rotate |
| Ch 15 | Prism amplification |
| Ch 16 | Focus |
| Ch 17 | Lamp on/off |
| Ch 18 | Reset |
