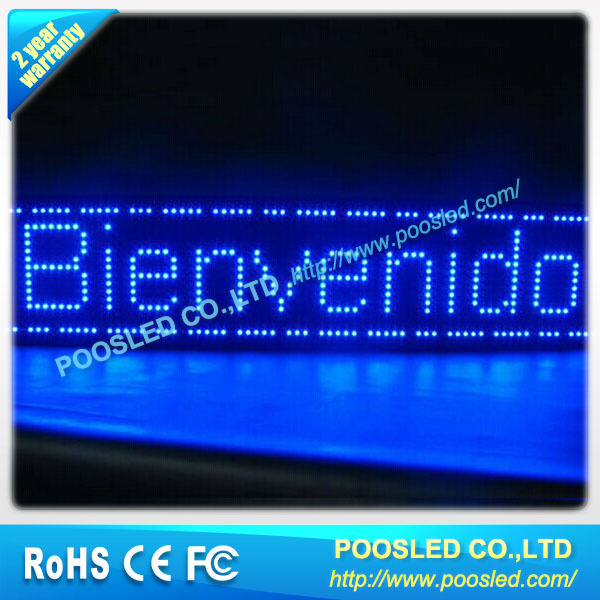

semi outdoor scrolling advertising led displaySD-P10-B-3X11. Display English or different characters as well as graphic symbols.
2.
41 methods of displaying your message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left, etc. )
3.
9 Fonts, each with regular, bold and wide mode. User can add or modify the fonts. 67 pieces of other European characters
4. Built-in timer to power on/off during the day
5. Built-in real time clock.
4 kinds of time and 5 kinds of date formats. Customized time/date format are also available
6. With
memory capability of 16k bytes for text, 24k bytes for graphics, max. 250 text files and 250 graphic files.
7.
8 programmable display speeds
8
.8 pause periods from 0 to 60 seconds
9. Count-down/count-up function
10. Segmented display capability to allow
separate control of sections of the display
11. Sequencing
multiple messages. Built-in scheduler for up to 30 tasks. 3 priority setting enables scheduling by week, month or year.
12. Duplex function allows user read data from one sign by
a PC and copy it to another sign
13. Up to 128 units can network via
RS232 communication14. Interface of the managing software can be in
multiple languages15.
Low consumption16. Fixing methods: Desk, wall or ceiling
17. Display Real Temperature (optional)
| SD-P10-R-2x1 |
| Specifications |
| 1 | Sign's name | P10-R Single color Led Sign |
| 2 | Item classification | led chips(Cree for RED) |
| 3 | Pixel pitch(mm) | 10 |
| 4 | Density(pixel/squ.m) | 10000 |
| 5 | Module size(mm) | 320*160 |
| 6 | Pixels(w*h) | 32*16 |
| 7 | Configuration | 1Bule |
| 8 | Led sign's size(mm) | 670*190*55 |
| 9 | Resulution | 64*16 |
| 10 | Max. texts | characters,numbers |
| 11 | Display Color | Tricolor |
| 12 | Brightness | 1400-1600mcd |
| 13 | Brightness adjustment | use the software to adjust |
| 14 | Best viewing distance | 10-150m |
| 15 | Best viewing angle | horizontal:100-120 degree, vertical:30-60 degree |
| 16 | Average power consumption | 250w/squ.m |
| 17 | Max.power consumption | 400w/squ.m |
| 18 | Control mode | Asynchronous |
| 19 | Drive mode | 1/4 scan |
| 20 | PC operating system | win98,winxp,win2000,win7 etc.. |
| 21 | Control system | RS232 Control |
| 22 | Software | POWERLED |
| 23 | Frame rate | >60hz |
| 24 | Refresh rate | >180hz |
| 25 | Working temperature | storage:-40~+75C |
| 26 | Woking Voltage(AC) | 100-230V |
| 27 | Supply Voltage(DC) | 5V |
| 28 | Power(W) | 51 |
| 29 | Power Supply | Chenglian with CE certification |
| 30 | MTBF(Mean Time Between Failure) | >5000 hours |
| 31 | Display lifespan | >100000 hours |
| 32 | Frame(Cabinet) | Aluminum frame |
| 33 | Using environment | Semi-outdoor |
