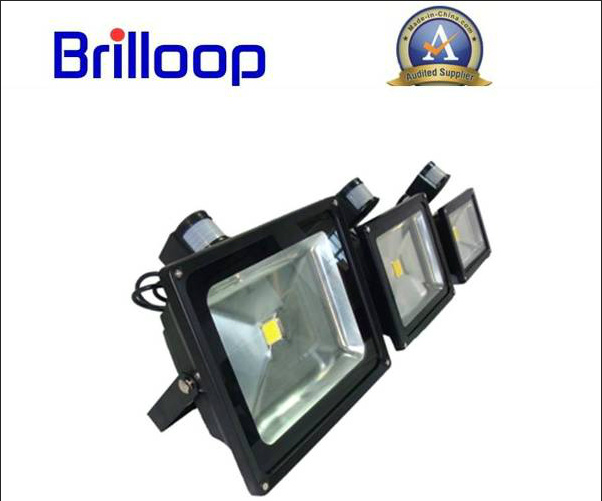

PIR sensor LED flood light, LED project light, floodlighting
1.30W LED PIR Flood light
2. CE, RoHS, FCC
3.2 years warranty
4. Motion sensor LED flood light
Main features:
1. We have CE, RoHS and FCC certificates
2. 45mil and 38mil LED chips with very high luminance output!
3. The power factor for the flood lights (>=20W) is higher than 0.95 with isolated driver. This can ensure the lifespan of the light.
4. We can achieve 83lm/W for the WHOLE LIGHT FIXTURE with 45mil chips.
Operation Principle:
The product is an energy-saving automatic switch, when one enters the detection field, the infrared radiation from human body be found by the detector, then the light will shine and automatically turn on; And will turn off after one leaves.
Function:
1. Through the detector, ambient-light can be adjusted. So it can identify day or night.
2. The detection distance is adjustable from 2-11m.
3. The range of the working time can be adjusted from 10-900 seconds.
Product No. |
BLP-FL30W01-PIR |
Light source |
COB High power LED |
Power Consumption |
30W |
Input Voltage |
AC100-240V 50-60Hz |
Power Factor |
> 0.92 |
LED Working Voltage |
DC30-36V |
LED Driving Current |
DC320mA |
Luminous Flux |
1800-2500Lm |
Color Temperature |
2800-7500K |
Color Render Index |
Ra≥ 70 |
LED Luminous Efficiency |
60-80lm/W |
Detection Distance |
5-12m(< 22° ) |
Beam Angle |
120° |
Average Illuminance |
Height: 4 m |
30 Lux |
Height: 6m |
13 Lux |
Height: 8m |
7.5 Lux |
Illuminance Area |
Height: 1m |
4.5 x 4m |
Height: 2m |
9 x 8m |
Height: 3m |
13 x 12 |
Working Temperature |
- 30 to 50 |
Working Humidity Level |
10-90%RH |
Storage Temperature |
- 40 to 60 |
LED Lifelong |
50, 000H |
Housing |
Aluminum |
Grade of Protection |
IP65 |
Shape& Sizes |
L225mm × W185mm x H115mm |
Weight |
2.8 Kg |
