Advantages of the products:
1. High lumen Samsung LED, 100lm/w for whole lighting, CRI>83; Bridgelux COB LED;
2. Excellent driver wide AC100V~240V, PF>0.90, low THD<15%.
3. Ultra-low light degradation, compliance with the US Energy star requirements, L70>35, 000hrs.
4. Good thermal structure design, the fully released, lamp life last longer than 35, 000hrs.
5. Dimmable and emergency version available for choice.
6.3 years warranty, CE, RoHS, SAA approved.

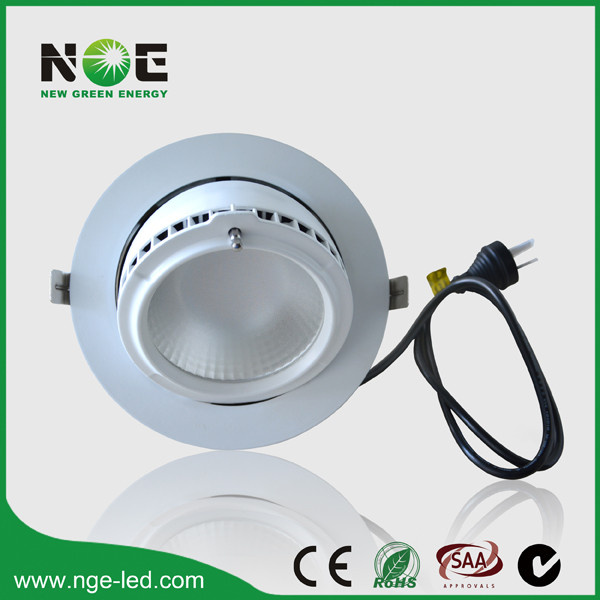

7. Direct replacement for traditional ratatable downlight, popular in shop, supermarket.
Item No. |
Watt |
Input Voltage |
Lumens |
Size |
Cutout |
LED Brand |
CRI |
NGE-SMD01-AD20W |
20W |
AC100~240V 50~60Hz |
1850±100LM |
φ195*179mm |
φ165mm-185mm |
Samsung SMD LED |
>80 |
NGE-SMD01-AD28W |
28W |
AC100~240V 50~60Hz |
2550±100LM |
φ195*179mm |
φ165mm-185mm |
Samsung SMD LED |
>80 |
NGE-SMD01-AD38W |
38W |
AC100~240V 50~60Hz |
3500±100LM |
φ195*179mm |
φ165mm-185mm |
Samsung SMD LED |
>80 |
NGE-SMD01-AD48W |
48W |
AC100~240V 50~60Hz |
4750±200LM |
φ250*144mm |
φ210mm-230mm |
Samsung SMD LED |
>80 |
NGE-SMD01-AD60W |
60W |
AC100~277V 50~60Hz |
6000±200LM |
φ250*144mm |
φ210mm-230mm |
Samsung SMD LED |
>80 |
NGE-COB01-AD20W |
20W |
AC100~240V 50~60Hz |
1800±100LM |
φ195*179mm |
φ165mm-185mm |
Bridgelux COB LED |
>75 |
NGE-COB01-AD28W |
28W |
AC100~240V 50~60Hz |
2400±100LM |
φ195*179mm |
φ165mm-185mm |
Bridgelux COB LED |
>75 |
NGE-COB01-AD38W |
38W |
AC100~240V 50~60Hz |
2900±100LM |
φ195*179mm |
φ165mm-185mm |
Bridgelux COB LED |
>75 |
NGE-COB01-AD60W |
60W |
AC100~277V 50~60Hz |
4900±200LM |
φ250*144mm |
φ210mm-230mm |
Bridgelux COB LED |
>75 |
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We specialize in LED shop lighting, office Lighting, commercial lighting, industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED panel, LED downlight, LED high bay, LED floodlight are our most popular products.
NGE Technology has more than 180 experienced workers, 15 persons' R&D team and 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has excellent overseas sales and after-sales teams. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
