Video Link of Rubik P6
| Video link 1 | https://youtu.be/G8hqtO7eUsc |
| Video Link 2 | https://www.youtube.com/watch?v=vPk-ZQfPSeY |
| Video link 3 | http://youtu.be/e_GRrG5EXIY |
| Video link 4 | http://youtu.be/WE8rYiachYw |
Features

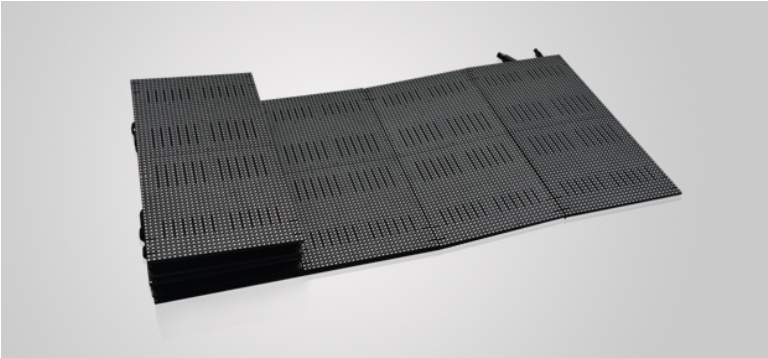

1, Face material of soft LED display is designed with high quality DFR drapery, this polyester is totally durable and fire, water, dusty resistance.
2. Featured with lightweight, small volume and thin, great for touring show.
3. Easy to setup, as long as hang up the curtain, can produce production.
4. Soft and flexible, suitable for all kinds of irregular shape to display character and image, such as circle, column, ellipse and triangle
5. Many pieces can be combined together
6. Indoor character and image display, media advertising display, entertainment, stagebackground, exhibition and rental.
7. Specification
1, Model No.: Rubik 6
2, Pixel Pitch: 6.64mm
3, Visual Distance: 5m
4, Density: 22682 pixel /sq. M
5, Refresh Rate: Large than 7000 Hz
6, Brightness(white): 2600 Nit
7, Display Mode: 1280*1024
8, Average Power Consumption: 93 W/ sq. M
9, Max Power Consumption: 280 W/sq. M
10, Recommendation moudel size: W=425mm L=1700mm T=25mm
11, Weight: 10.5kg/sq. M
12, Working Voltage: DC24V
13, Brightness Level: 16 Levels
14, Bit depth per color: 16 bit
15, Bit depth per pixel: 48bit
16, Visual angel: Horizontal: 120 degree; Vertical: 120 degree
17, Drive Mode: Constant Current
18, Signal Type: AV, S-Vedio, VGA, CVBS, HDMI, DVI
19, Operating System: Windows2000/XP/Vista/Windows7
20, Control Distance: HSYV; Within 100m
21, Body Material: Plastic Metal
22, Ingress Protection: Front IP65. Rear: IP43
23, Working Temperature: -20 ~ +50 degree C
24, Relative Humidity: 10% - 90%
25, Installation: Hang
26, Power System: Power-600, Power-1200, Power-2000
27. CE FCC RoHS SGS fire test report
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
