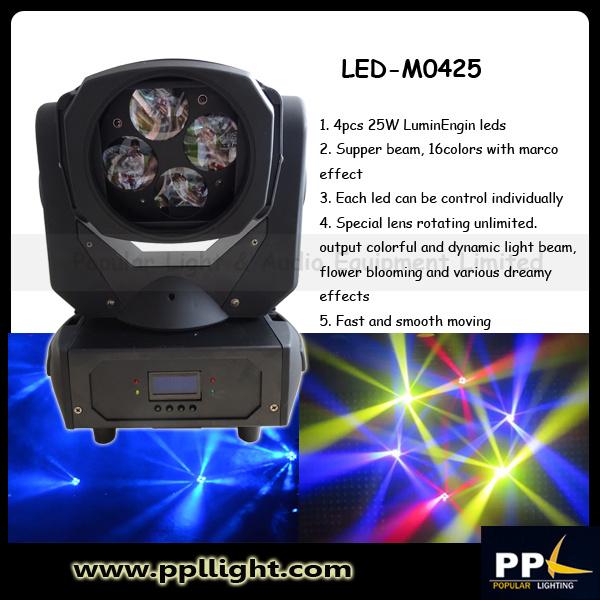

Features :
1)compact LED moving head ,beam and graphic effect
2) 5°sharp beam effect , the beam spot of 4 LED can be overlapped to only one brighter spot
3) LED lense wheel rotates endlessly at both directions to make graphic effect
4)4pcs 25W single white lumiEngin LED , bright and powerful
5) strobe and dimming are micro-processor controlled ensuring smooth 0-100% dimming as well high speed 0-23HZ strobe effect
6) low noise (less than 40db )
Technical Parameter :
Input power:AC100-240V 50/60 Hz
Power consumption :117W
LED: 4pcs *25W lumiEngin LED
Averiage life span :50000 hours
DMX channel: 11/16channels
DMX connector : 3 pin XLR
Control mode:DMX512/Master-Slave/Auto run/sound
Electronic zoom from 5 degree to 45 degree
Movement:Pan/Tilt:X axis540/630degree ,Y axis 235 degree
Display: LCD display
Motor quantity :3pcs
color:16 colors
color wheel:360 degree stroke position
LED lense wheel rotates endlessly at both directions to make graphic effect, the beam spot of 4 LED can be overlapped to only one brighter spot
Beam angle: 5 degree
dimming : 0-100% liner dimmer
LUX:6500lux at 3m
strobe :0-23HZ .
IP rate :IP20
cooling : fans
DMX Channel:
| 11CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | X motor | Y motor | strobe | LED1 dimmer | LED2 dimmer | LED3 dimmer | LED4 dimmer | dimmer | rotating motor | color wheel motor | macroefficiency |
| 16CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| function | X motor | X motor fine-turning | Y motor | Y motor fine-turning | X/Y motor speed | X/Y motor effect | X/Y motor effect speed | rotating motor | color wheel motor | macroefficiency | dimmer | strobe | LED1 dimmer | LED2 dimmer | LED3 dimmer | LED4 dimmer
|
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
