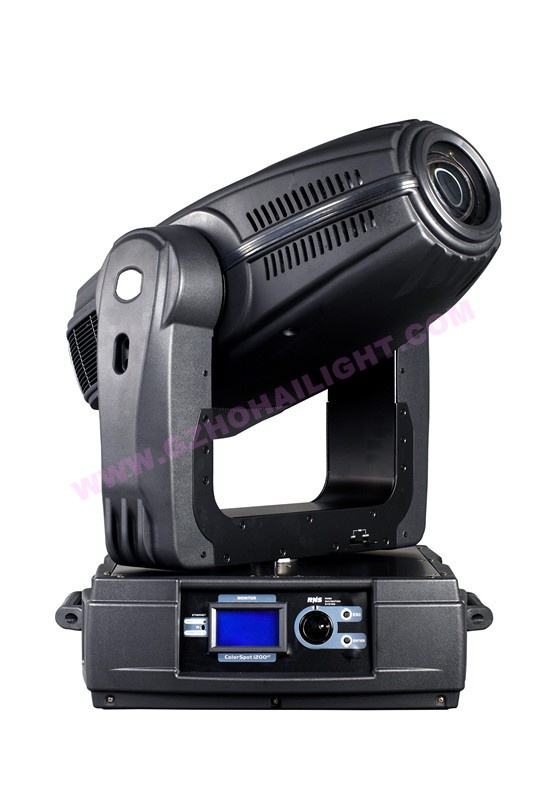

Robe 1200W moving head spot
Correspondence agreement:the USITT DMX-512
Control channel:24/32
Source:
1200PF Lamp : philips MSR 1200 SA
Electricity parameter:
Power supply:180-240 V 50/60 HZ Electronic ballast
Cyan:0-100% / Magenta: 0-100% Yellow: 0-100%
CTO: 0-100%
Color wheel 6 colour with white
Gobo wheel 1 : 6 rotating gobo with white
Gobo wheel 2: 6 rotating gobo with white
Gobo diameter: 37mm
Iris: Motorized,stepless
Effect wheel: 4 rotating, prism and effect with shite
Frost : separate,variable
Dimmer/shutter:
full range dimming and variable strobe effect
Focus : 2M-infinity
Zoom: 14°~ 46°/ 13°~ 42°
Mechanical parameter:
Height:820mm Width: 500mm Length:530 mm
N.W. 44.8 kg /41.5kg
Pan:530° Tilt:280°
Display:Blue/white LCD graphic
Working temperature:
Max ambient temperature: 40°C
Max surface temperature: 135°C
Install:
Mounting points : 4pairs of 1/4 turn locks
Fixing: Pan/tilt lock
CH1 PAN
CH2 PAN 16BIT
CH3 TILT
CH4 TILT 16BIT
CH5 PAN/TILT SPEED
CH6 SPECIAL FUNCTION
CH7 PAN/TILT MACRO FUNCTION
CH8 PAN/TILT MACRO SPEED
CH9 COLOR WHEEL
CH11 MAGENTA
CH12 YELLOW
CH13 CTC
CH14 CMY MACRO
CH15 EFFECT SPEED
CH16 EFFECT SPEED ASSIGNING
CH17 GOBO 1
CH18 GOBO 1 ROTATION
CH19 GOBO 16BIT
CH20 GOBO 2
CH21 GOBO 2 ROTATION
CH22 GOBO 16 BIT
CH23 PRISM
CH24 PRISM ROTATION
CH25 PRISM 16BIT
CH26 FROST
CH27 IRIS
CH28 ZOOM
CH29 FOCUS
CH30 STROBE
CH31 DIMMER
CH32 DIMMER 16Bit
