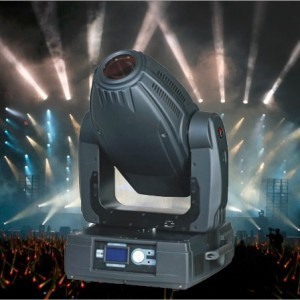

Robe 1200W moving head light DD-009
Lamp: 1200W short arc discharge
Base: G-22
Approved model: Philips MSR 1200 SA
JENBO MSK1200SA
Electrical Specification
Wiring options: 208/230/250V, 50Hz; 208/230V, 60Hz
Power consumption: 1500W at 220V/50Hz
Mechanical Specification
Height: 880 mm (head in horizontal position)
Width: 550 mm
Depth: 640 mm
Net weight: 50kg
Gross weight: 80 kg ( with flycase )
Thermal
Maximum ambient temperature (Ta): 40centigrade
Maximum surface temperature: 135centigrade
Gobos
Outside diameter: 37, 5 +0/-0, 25mm
Image diameter: 31, 5mm
Thickness: 1, 1mm up to 6mm in rotating slots
Material: High-temperature Borofloat glass
Prisms and Effects
Outside diameter: 47 +0/-0, 3 mm
Thickness: Up to 5mm in rotating slots
(up to 8mm in the center)
Control and Programming
Protocol: USITT DMX-512
Control channels: 24 or 32
Display: Blue/white LCD graphic
Pan/Tilt resolution: 8- or 16-bit
Gobo indexing: 8- or 16-bit
Prism indexing: 8- or 16-bit
Data in/out: Locking 3-pin & 5-pin XLR
Electromechanical Effects
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
CTO: 0 - 100%
Color wheel: 6 replaceable 'SLOT&LOCK' colors +
Open Gobo wheel 1: 6 rotating, inflexable,
Replaceable 'SLOT&LOCK' dichroic glass gobos + open
Gobo wheel 2: 6 rotating, indexable, replaceable 'SLOT
&LOCK' dichroic glass gobos + open
Gobo dimension: Gobo size: 37.3mm picture size: 31.5mm
Iris: Motorized, stepless
Effect wheel: 4 rotating, indexable, replaceable 'SLOT&
LOCK' prisms and effects + open
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and
Variable strobo effect
Focus: 2m - infinity
Zoom: 13° - 42°
Pan: 530°
Tilt: 280°
Rigging
Mounting points: 8 pairs of 1/4-turn locks
Fixation option: Pan/Tilt-lock mechanism
