General introduction
Hongyuan LVD professional street light upgrades road safety and comfort to a new height and ensures the city artery is stable and fluent with its high color rendering and wide lighting range. It even draws the outline of every road to form beautiful scenery at night.With lighting grading features,Hongyuan LVD professional street light provides a more high-efficient lighting effect with more energy-saving and sustainable lighting solutions by matching the induction lamp low maintenance cost advantage.

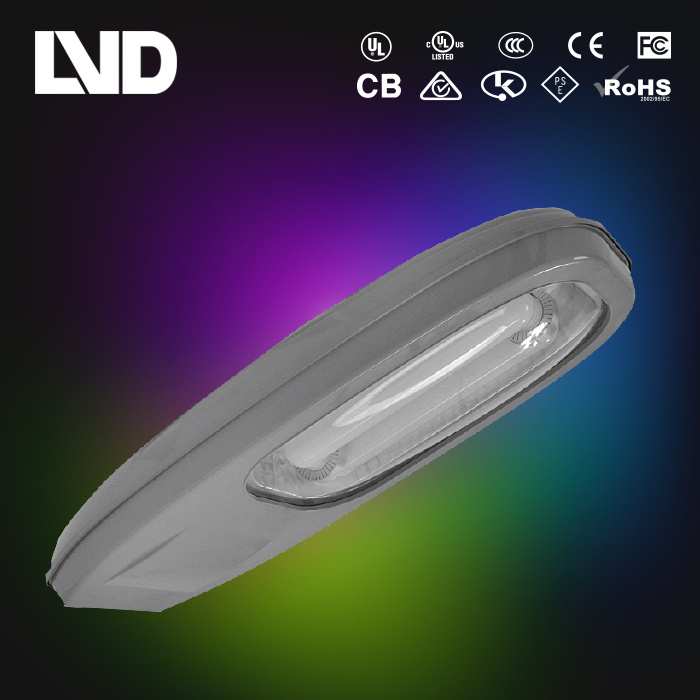

LVD-ZD04000
----------------------------------------------------------------------------------------------------------------------
NO.06-008
Model:LVD-ZD04000
Category:Street Light
Lamp Source:Smart Dragon Series
Size:935x400x245
Protection Grade:IP65
Weight:8KG(ReferenceOnly)
Package Dimensions:1000*430*315
Installation Diameter:Fixed diameter:Φ60
Materials:Aluminum alloy die-casting high temperature resistance cambered surface toughened glass
Applications:urban road ,expressway,elevated line,Bridge and other lighting places
Product Features
----------------------------------------------------------------------------------------------------------------------
1.The lamp and electrical cabinet is made of high pressure die-casting aluminum whose fashionable appearance is suitable for various applications.
2.High strength, high temperature resistance cambered surface toughened glass
3.The one-time shaped high purity alumina reflector provides optimized light distribution.
4.Electrostatic spraying on surface
5.Selective photoswitch
6.Equipped with our Company's Smart Dragon LVD induction lamp; high luminous efficiency, long use-life, excellent color rendering, stable ray and no flash, energy-saving, wide color temperature , soft ray, stable light output, etc.
Successful case
-----------------------------------------------------------------------------
LVD Production Base
-----------------------------------------------------------------------------
|
model |
Working voltage |
electric current |
Power Factor |
Operating Temperature |
main frequency |
|
LVD-WJ220/50-120DJF |
220V |
0.59 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-150DJF |
220V |
0.74 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-200DJF |
220V |
0.98 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-80DJF |
220V |
0.4 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-120DJF |
347V |
0.37 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-150DJF |
347V |
0.46 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-200DJF |
347V |
0.62 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-80DJF |
347V |
0.24 |
0.98 |
-25-50ºC |
210khz |
|
Series |
Model |
Nominal Light Flux |
Light Appearance |
Rated Wattage |
|
Smart Dragon |
LVD-LL80W |
6400 |
280x140x98 |
80W |
|
Smart Dragon |
LVD-LL120W |
9600 |
351x140x98 |
120W |
|
Smart Dragon |
LVD-LL150W |
12000 |
351x140x98 |
150W |
|
Smart Dragon |
LVD-LL200W |
16000 |
431x148x105 |
200W |
Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
