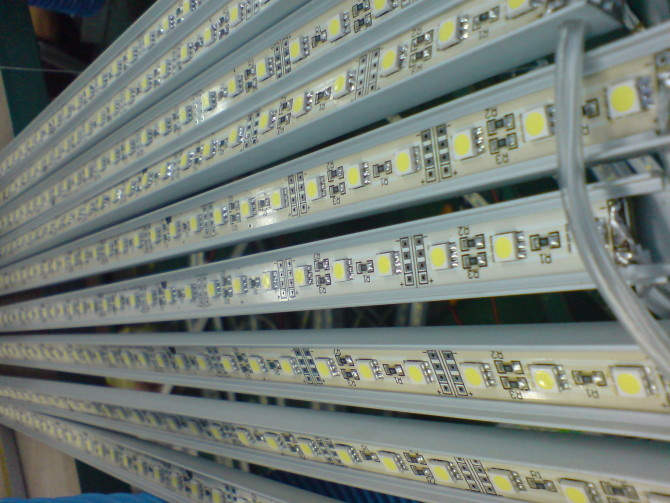

SMD3528 LED light bar/ rigid strip,
SMD5050 LED lightbar / rigid strip,
Superflux LED lightbar / rigid strip.
Working Voltage: DC12V, 9-18VAC, 9-28VDC available.
LED Viewing Angle: 120 Degree.
Rigid LED Light Bar Grade of Waterproof: IP68,
Widely used in car decorative lighting, outdoor/indoor decorative lighting, swimming pool decorative lighting.
Furniture lighting, kitchen lighting and so on.
Applications:
1. Ad words, ultra-thin light boxes, light words, luminescent signboard backlights;
2. Buildings, bridges, signboards and other decorative outline;
3. High-end stores, shopping malls, home and other indoor lighting;
4. Cars, corridors, staircases, furniture, show windows and other decoration, hidden location and indoor dark trough lighting;
5. Bars, KTV, cafes, stages and other entertaining places atmosphere rendering;
6. Salons, handicrafts and other high-end counter lighting.
Features:
1. Using ultra-thin FPC as the substrate, it can be freely bent with the features of the thickness of only 0.2mm, small size, rich color.
2. Light source adopts SMD 5050 and a loop every 3 lamps can be used according to requirements of any cut for the tangent (The use of a 24V power supply, compared with 6 lights a loop). Or connection with every string up to 5 meters. The excess parts should be connected the lighting source in parallel.
3. With ultra-small size, width of only 10mm, 30 lights per meter, light, and power rate only 7.2 W, the standard length is 5 meters per roll, per roll of 150 lights.
4. Using DC12V safe voltage, non-waterproof series to paste 3M adhesive after the PFC board, protective layer can be torn to attach to any place for indoor; For waterproof series, two methods of epoxy (3M adhesive back stickers installation) or set tube (Snap installation) can be chosen for outdoor.
Environmental Parameters:
Operating Temperature: -40° C ~ 60° C
Storage Temperature: -50° C ~ 80° C
Waterproof: IP68
Notes:
1. Before usage, please note that the products use power supply DC12V(or DC24V), and there is polarity, + is for positive power supply, for negative one.
2. Please pay attention to ESD protection, operating needs with electrostatic rings and static gloves for the products usage.
UDT 5050 SMD LED Light Bar |
1. Adopt SMD5050-3junctions LED as light source, greater view angle and higher luminous flux. |
2. All Aluminum channer as base, stable, durable and thermal well |
3. No gap connection design by using white waterproof middle connector |
4. A new generation of dedicated plug and bracket, convenient for installation and faster |
5. U-tanslucent PC cover , anti-glare effectively, dust water and leakage power |
6. Optional specification: 200mm, 300mm, 500mm, 1000mm |
|
Technical parameters |
Part Number | Color | LED Type& Qty | View Angle | Work Voltage | Power | Luminous Flux | Packing |
UDT-D72W | Pure White | 72PCS 5050 SMD LED | 120 degree | DC 12V | 17.2W/M | 480-640LM/M | Caton |
UDT-D72WW | Cool White | 480-640LM/M |
UDT-D72N2 | Warm White 2900K-3000K | 480-640LM/M |
UDT-D72N3 | Warm White 2600K-2700K | 430-550LM/M |
COPIN (Shenzhen Copin Lighting Co. Ltd) are specialized in manufacturing LED lightings for the five-star Hotel, KTV, club and other public entertainment place, with R&D, production, sales and service of integrated professional manufacturer. It was founded in 2005 and got outstanding achievement. Our serve Hotel bland main are Crowne Plaza Hotel, sheraton Hotel, sofite Hotel, Marriott Hotel, Westin Hotel, Conrad Hotel.
Copin LED products lines main include: LED Strip, LED modules, LED spotlight, LED tubes, LED bulb,and outdoor lights like street light, flood light,wall washer, underwater lamp ect.
KTV, Club LED products include: DIY Compartment LED Series, DMX Public Control LED Series, Bar Intensive LED Series.
"COPIN" Science Service, Enterprising" business philosophy, developing "Human Technology" enterprise culture, actively bring in and absorbing new knowledge, new technology to improve our service quality. With advanced technology, satisfactory service, strict quality control, advanced production equipment and perfect service system to meet customers' needs, have been winning lots of trust and supports. We are willing to cooperate with all friends, sincerely provide OEM and ODM service for both oversea and domestic enterprise and personnel.
