Feature:
1. New Quad-color LED technology
2. 18W 6IN1 RGBWA+UV LED multichip
3. Superior color mixing
4. No multi-color shadows
5. Extremely bright beam
6. 25°beam angle
7. Aluminium housing

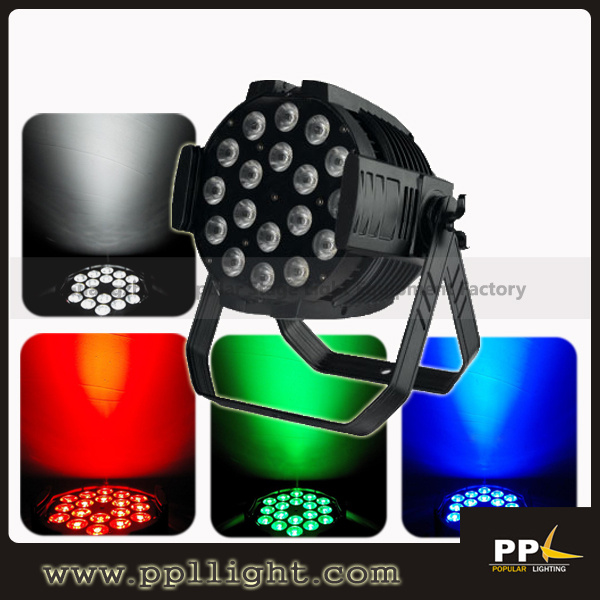

18PCS *10W 4-in-1 LED Classic Multi PAR Light Indoor
Technology Parameter:
Voltage: AC90V-245V, 50-60Hz
Power: 180W
Lamp: 18*18W RGBWA+UV 6in1
Beam angle: 25° As fittd, 15° , 35° , 45° , 60° Optional
Life time: >5000 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, music Activated
Channel: 6CH/10CH
Display Board: Digital or LCD display
Housing Material and Color: Aluminum; Black
Maximum Ambient Temperature: 45 ° C
Used in professional stage/studio/theatre/dyeling/effects
Packing size: 260x260x370 mm
N/G W.: 3.8/4.8KG
DMX Channel:
| DMX 8H Mode Channel |
| Channel | number | Function Description |
| CH 1 | 0-255 | General Dimmer |
| CH 2 | 0-255 | Strobe from slow to fast |
| CH 3 | 0-50 | CH 1-CH6 on |
| 51-100 | Color choosing process |
| 101-150 | Gradual change process |
| 151-200 | Pulse change process |
| 201-250 | Change process |
| 251-255 | Sound-activation |
| CH 4 | 0-255 | Speed from slow to fast |
| CH 5 | 0 | Red off |
| 1-255 | Dimmer ,from dark to light |
| CH 6 | 0 | Green off |
| 1-255 | Dimmer ,from dark to light |
| CH 7 | 0 | Blue off |
| 1-255 | Dimmer ,from dark to light |
| CH 8 | 0 | White off |
| 1-255 | Dimmer ,from dark to light |
