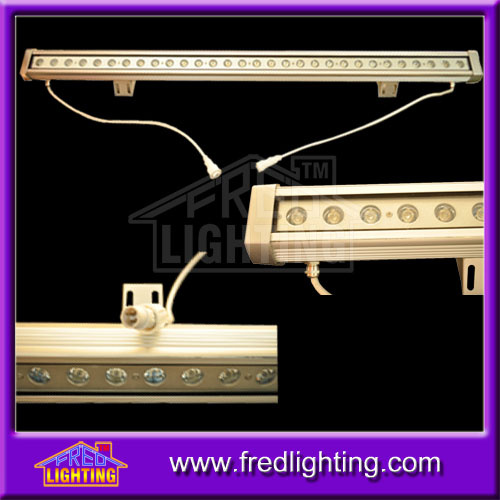

RGB LED wall washer
1) Input voltage: 24V DC or 220V AC
2) Dimensions (L x W x H): 52x 7.35 13.2
3) Light source: 15 x 1W power LED (0.5m)
4) Full range of colors: Cool white, warm white, red, green, blue, amber, and RGB color-changing
5) CCT: White (6, 000 - 6, 500k), warm white (2, 800 - 3, 200k)
6) Wavelength: Red (620 - 630nm), green (520 - 525nm), blue (465 - 470nm), amber
(590 - 595nm)
7) Beam angle: 15 degrees / 45degrees
8) Beam distance: 10 - 15 meters
9) IP rank: IP65 (waterproof)
10) Aluminum alloy housing
11) No UV or IR radiation
12) Net weight: 1.5kg (0.5m), 2.5 kg (1m)
Applications:
Floodlighting and wallwashing for bars, clubs, hotels, stages, parks, plazas, commercial buildings facade, mosques, museums, and art galleries, historical buildings, etc.
|
Part No. parameter |
FD-WWEW15P-B 0.5meter |
FD-WWCW30B-P 1meter |
|
Dimension(mm) |
L520*W73.5*H132 |
L1010*W73.5*H132 |
|
Main material |
Aluminum |
Aluminum |
|
IP rate |
IP65 |
IP65 |
|
Power consumption(W) |
22± 10% |
40 ± 10% |
|
Imput current(mA) |
920 ± 5 % |
1650± 5 % |
|
Imput voltage(V) |
DC24V |
DC24V |
|
LED quantity(Pc) |
15 |
30 |
|
LED type |
High power led 1W |
High power led 1W |
|
View Angle |
15 or 30 degree |
15 or 30 degree |
|
Color |
White/Red/Green/Blue/RGB |
White/Red/Green/Blue/RGB |
|
Luminous flux(Lm) For pure white color |
1050LM Edsion led 1425LM Cree led |
2100LM Edsion led 2850LM Cree led |
|
Color temperature(K) |
6000-6500(Pure White) 2800-3300(Warm White) |
6000-6500(Pure White) 2800-3300(Warm White) |
|
Rendering index |
CRI> 75 |
CRI> 75 |
|
Weight(kg) |
1.5± 0.1 |
2.2± 0.1 |
|
Lifespan(h) |
> 30, 000 |
> 30, 000 |
|
Ambient Temperature C |
-20 to 50 C |
-20 to 50 C |
