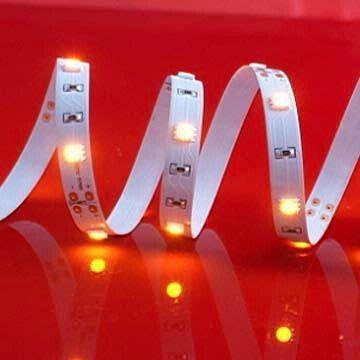

RGB LED strip light with SMD
5060 High Output Light Strip
GL-FB/DFB series
Products GL-DFB series of light stripes is to satisfy customers seeking a high brightness of the lighting and brilliant colors effects, the product characterized by the use of a three-chip TOP 5060 SMD LED as a light source, there are bright, colorful, brightness uniform characteristics, for home decoration, hotels, an ideal light source cabinet lighting options.
Features of RGB LED strip light:
1. Used 5050 TOP SMD RGB or signal color with three chip in one LED as lighting resources.
2.150 PCS LED(GL-FB-*)/300 PCS LED (GL-DFB-*) LED/5M.
3. Size: 5000X10MM(GL-FB-*)/5000X12MM(GL-DFB-*).
4. Available RGB/Red/Green/Blue/Yellow/Pure White/Warm White;
5. Input Voltage DC 12V or 24V;
6. Max power: 36W(GL-FB-*)/72W(GL-DFB-*).
7. Flexible LED can be cut by 3 LED (DC 12V) and 6LED (DC 24V) and connect again by our accessories;
8. With 3M adhersive tape back, easy for installation.
9. Can be change into waterproof with type A and type B
10. Flexible LED strip with can be chosen copper PCB or white PCB.
Application of RGB LED strip:
1. Cover lighting
2. Architectural light for canopy, corridor, window, archway
3. Backlight for edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show exhibition
Other:
General Lighting Electronic Co., Ltd. All rights reserved. No part of this photo may be reproduced, in any form or by any means, without permission in writing from General Lighting Electronic Co. Ltd.
|
Part No |
Color |
LED Q'ty |
LED Type |
Size(MM) |
Λd(nm)/Tc(K) |
certificate |
Flux(±5%) |
Max Power |
|
GL-FB-PW-N150F18WA1 |
Pure White |
150PCS |
TOP SMD
5050 LED |
5000X10 |
6000-7000K |
CE,
ROHS |
2697lm |
36W |
|
GL-FB-WW-N150F18WA1 |
Warm White |
150PCS |
TOP SMD
5050 LED |
5000X10 |
3000-3500K |
CE,
ROHS |
2027lm |
36W |
|
GL-FB-R-N150F18WA1 |
Red |
150PCS |
TOP SMD
5050 LED |
5000X10 |
620-625nm |
CE,
ROHS |
681lm |
36W |
|
GL-FB-G-N150F18WA1 |
Greed |
150PCS |
TOP SMD
5050 LED |
5000X10 |
520-525nm |
CE,
ROHS |
1785lm |
36W |
|
GL-FB-B-N150F18WA1 |
Blue |
150PCS |
TOP SMD
5050 LED |
5000X10 |
465-470nm |
CE,
ROHS |
550lm |
36W |
|
GL-FB-Y-N150F18WA1 |
Yellow |
150PCS |
TOP SMD
5050 LED |
5000X10 |
585-590nm |
CE,
ROHS |
735lm |
36W |
