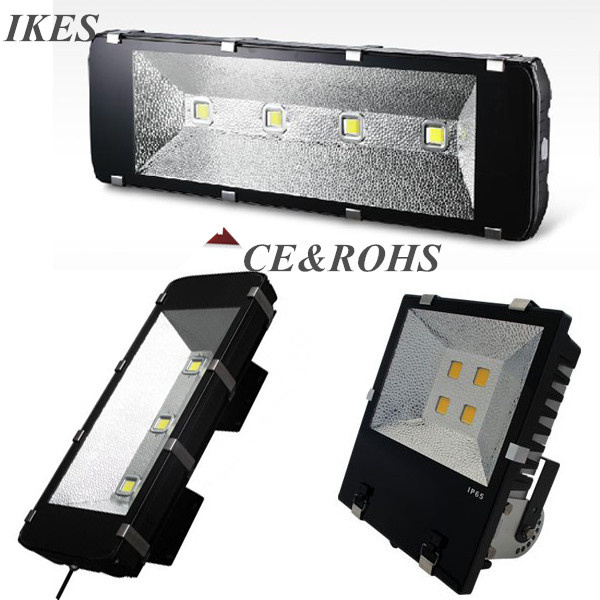

Best price IP65 Bridgelux cob 240w outdoor led floodlights
Features of LED 240W Flood Light:
Full waterproof design
High transmittance empered glass, transimittan 93%
The radiating area 1250cm²
Multi-Chip on lead frame, single module LED package design
System design integrating power supply, LED light engine, and heat sink
Over Current, Over Voltage, Over Heat, Thunder Protection
Choice of correlated color temperatures
Long lifespan for LED 50, 000 hrs
Complying with CE, RoHS, No strobing during working, Fast response (no delay), No
Mercury vapour, No radiation, No UV, No damage with frequency switching
IP Rating: IP65
Power supply direct touch the radiator, in light weight
Product Dimensions
Aplication
1. Projector / Spotlight/ Tunnel Lighting
2. Pathway Lighting / Park Lighting
3. Garden Lighting/Backyard Lighting
Features
Multi-Chip on Lead Frame, Single Module LED Package Design
System Design Integrating Power Supply, LED Light Engine, and Heat Sink
Over Current, Over Voltage, Over Heat, Thunder Protection
Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
Long lifespan for LED 50,000 hrs
100% Recycle, No Pollution, and UV, IR
Operation and Storage Condition:
1.Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
2. Input Voltage 85-265V AC, 50/60Hz
3. Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 8~10mheight
Certificate:
The Whole Floodlight Certificated with ROHS
The Whole Floodlight Certificated with CE
|
Input voltage |
AC85V-265V |
|
Frequency range |
50Hz-60Hz |
|
Total harmonic distortion |
≤ 9% |
|
Power factor |
> 0.98 |
|
LED work voltage |
DC30-36V |
|
LED quantity |
4PCS |
|
LED power consumption |
240W |
|
Total power consumption |
259W |
|
LED lamp output lumen |
85-90LM/W |
|
LED lamp output lumens |
Warm white |
20,400LM |
|
|
Pure white |
21,600LM |
|
|
Cool white |
20,880LM |
|
Lamp efficiency |
> 90% |
|
Average illuminance |
Height 6M |
> 212.9LUX |
|
|
Height 8M |
> 119.9LUX |
|
|
Height 10M |
> 76.7LUX |
|
Illuminance area |
Height 6M |
26*24m Rectangle |
|
|
Height 8M |
32*31m Rectangle |
|
|
Height 10M |
37*36m Rectangle |
|
Illuminance uniformity |
> 0.7 |
|
CCT |
Warm white |
2700K-3500K |
|
|
Pure white |
4500K-5500K |
|
|
Cool white |
6000K-7000K |
|
Color index |
Warm white |
Ra > 70 |
|
|
Pure white, Cool white |
Ra > 70 |
|
Light distribution |
Symmetric / Rectangle Spot |
|
Light design |
LED+Reflector |
|
LED junction temperature |
≤ 70 ºC |
|
Work environment |
-40 __ +45 ºC |
|
Storage environment |
-40 __ +65 ºC |
|
Protection class |
IP65 |
|
LED lifespan |
> 50,000hrs |
|
PSU connection |
Brown |
L (live line) |
|
|
Blue |
N (null line) |
|
|
Yellow or Green |
G (ground line) |
|
Color of the shell |
Black |
|
Certificates |
CE/RoHS/FCC |
|
N.W/G.W/pcs(Bracket included) |
18.6Kg/21.74Kg |
|
Packing/pcs(Bracket included) |
100*37*28.5cm |
