Feature:

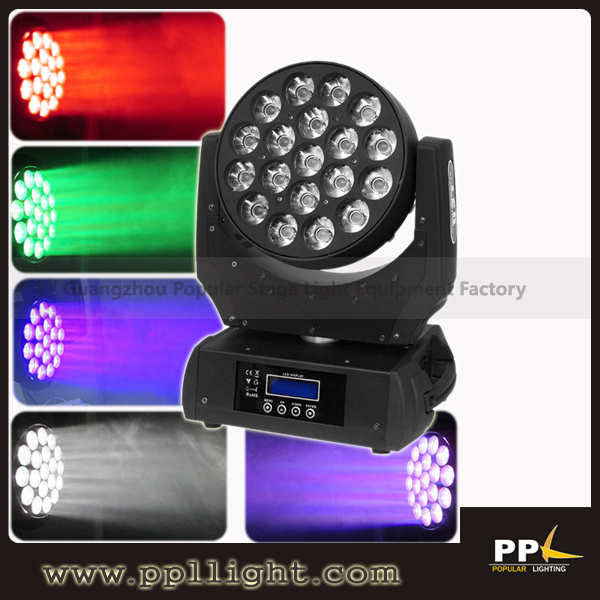

1. 19pcs OSRAM RGBW 4in1 LEDs
2. High light output as 1150LUX@ 7M at full
3. High efficiency 8 degree optic lens
Specification:
Voltage:AC90V-240V,50/60Hz
Power consumption: 228W
Light source: 19×12W(RGBW4-in-1Osram high power LEDs)
Color: Black
Extremely long Life:50,000 Hrs with low power consumption
DMX Channels: 15channels
Movement:For smooth and precise resolution Pan 540 ,Tilt 265 movement;
16bit High speed of pan/tilt movement,speed is adjustable scan position memory, auto reposition after unexpected movement
Zoom/Focus:4-in-1 LED with zoom/Focus function
Strobe:Strobe effect with 18 flashes per second and pulse effect
Display:Friendly blue LCD display
Preset program:8buile in programs can be called up via DMX controller
RDMX(can be orderd):remote DMX addressing,lamp on/off,Sound control switch by controller
Other function:General dimming and blackout for all four colors,Excellent color mixing and rainbow effect
Beam Angles:Linear 15(16bit)
Housing: Composite plastic(ip20)
Protection:Fan cooling Over heat protection
Work environment:Indoor-15-40 °
Color:Black
Packing size:460X330X420mm
N./G W : 9/11kgs
DMX Channel:
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| FUNCTION | Pan | Pan | Tilt | Tilt 16bit | Pan/Tilt speed | Dimmer | Strobe | Red |
|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 |
|
| White Green | Blue | White | Zoom | Color tem
low to high | MacroColor
step | MacroColor
line |
|
|
