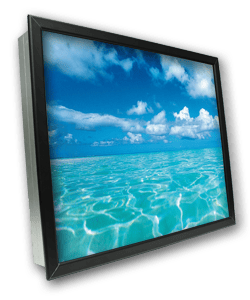

Designed For permanent install into wall or monument, indoor use
Your choice of 4 frame styles
All extruded aluminum
Construction for premium durability
Fully UL-listed appliance
With ADA-compliant protrusion clearance
Custom-built in the USA
To your order
Cool white fluorescent lighting
For optimal color & brightness
Optional tamper-resistant security screws Available
Finish color options Available
NOMINAL SIZE | GRAPHIC SIZE | OUTSIDE DIM. | VISIBLE AREA | CASE DEPTH |
16" x 20" | 16" x 20" | 16.625 x 20.625" | 15.25" x 19.25" | 4.75" |
20" x 24" | 20" x 24" | 20.625 x 24.625" | 19.25" x 23.25" |
20" x 30" | 20" x 30" | 20.625 x 30.625" | 19.25" x 29.25" |
22" x 28" | 22" x 28" | 22.625 x 28.625" | 21.25" x 27.25" |
24" x 24" | 24" x 24" | 24.625 x 24.625" | 23.25" x 23.25" |
24" x 30" | 24" x 30" | 24.625 x 30.625" | 23.25" x 29.25" |
24" x 36" | 24" x 36" | 24.625 x 36.625" | 23.25" x 35.25" |
24" x 48" | 24" x 48" | 24.625 x 48.625" | 23.25" x 47.25" |
24" x 60" | 24" x 60" | 24.625 x 60.625" | 23.25" x 59.25" |
30" x 30" | 30" x 30" | 30.625 x 30.625" | 29.25" x 29.25" |
30" x 40" | 30" x 40" | 30.625 x 40.625" | 29.25" x 39.25" |
36" x 36" | 36" x 36" | 36.625 x 36.625" | 35.25" x 35.25" |
36" x 48" | 36" x 48" | 36.625 x 48.625" | 35.25" x 47.25" |
36" x 60" | 36" x 60" | 36.625 x 60.625" | 35.25" x 59.25" |
36" x 72" | 36" x 72" | 36.625 x 72.625" | 35.25" x 71.25" |
40" x 60" | 40" x 60" | 40.625 x 60.625" | 39.25" x 59.25" |
43" x 62" | 43" x 62" | 43.625 x 62.625" | 42.25" x 61.25" |
48" x 48" | 48" x 48" | 48.625 x 48.625" | 47.25" x 47.25" |
48" x 60" | 48" x 60" | 48.625 x 60.625" | 47.25" x 59.25" |
48" x 72" | 48" x 72" | 48.625 x 72.625" | 47.25" x 71.25" |
48" x 84" | 48" x 84" | 48.625 x 84.625" | 47.25" x 83.25" |
48" x 96" | 48" x 96" | 48.625 x 96.625" | 47.25" x 95.25" |
