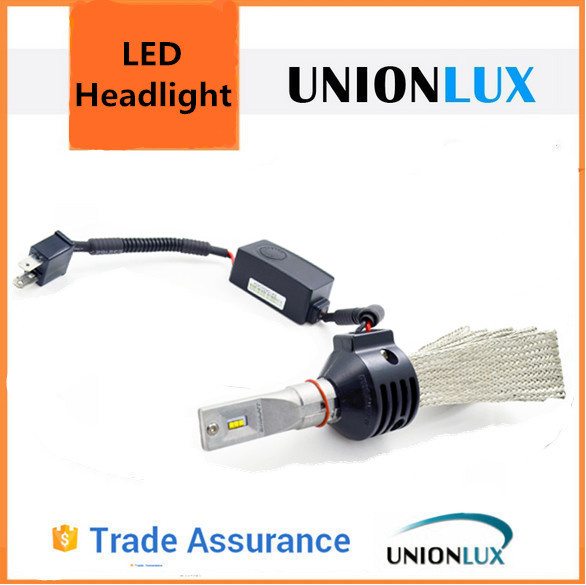

Philips chip Headlight Copper Wire LED Headlamp Kits
Model | P51 Fanless led headlight |
| Single beam type | H7,H8,H10,H9/H11/H16(JP),H16(EU)/5202,9005,9006,H12,D1/2/3/4 |
| Dual beam type | H4 H13 9004 9007 |
| LED chip type | 6*5W LUXEON Z ES |
| Voltage | 9-30VDC |
| Current | 2.3A-DV12V, 1.9A-DC13.5V |
| Operating Power | 22W |
| Lumens | 2800LM |
| Color Temp. | 6000K |
| Other Color Temp. | 3000K,5000K (200 sets/each) |
| Working Temp. | -45°C~+85 °C |
| LED chip wrok Temp. | -40°C~+120 °C |
| Protection | Reverse polarity protection |
| Life-Span | 50000 hours |
| MOQ | No MOQ for sample test |
| Remarks | Anti-EMI(anti-electromagnetic interference): S95/54/EC |
Feature of P51 Fanless LED headlight:
Ultra-light effect, ultra-low thermal resistance,exceeded Energy Star standards.
Light body heat dissipation all in one design, 360degree heat groove: Double-sided copper PCB board+ High thermal conductivity aluminum+ Copper mesh cooling,perfect thermal design.
Applied with newest copper mesh thermal system, with powerful thermal and heat dissipation, had solved overheat burning problem of LED headlight that caused by fan malfunction.
Copper mesh requires smaller space,optionally bent in different directions, coupled withsmall size cooling pad, suitable for all car types.
Quick start, reach 100% brightness when start up, with incomparable start response rate than HID.
Stationary base separate from light body design, easy to install,with removable stationary base adaptors, it can be changed to different base for separate use, lower the stock pressure.
Ultra small size driver design, connected with light source, easy for installation.
Complied with IP65 waterproof and dustproof standards(Don't put lamp beads emitting surface into the water, because LED is directly exposed.)
In line with EMI anti-interference requirements, external canbus relay can pass the car computer system.
LUXEON Z ES chips for P51 Fanless LED headlight
1. LUXEON Z ES only has 2X1.6mm emitting surface, providing unprecedented color consistency, brightness and luminous flux density. Better compact beam angle, higher luminous efficacy, ideal for automotive lighting source.
2. Cooperated with Korea engineer, Use 3 pcs lamp beads arrangement with 2 emitting surface design, same as original halogen emitting area, light beam pattern has equivalent effect as halogen bulb.
Simulate halogen tungsten wire light design - Perfect beam pattern
Imitate original halogen/xenon bulbs, for better lighting pattern.
Luminous point almost the same as Halogen/HID bulbs.
Tiny emitting point: close to the halogen/xenon bulb,
Smaller size of top light body: smaller width, more focus.
