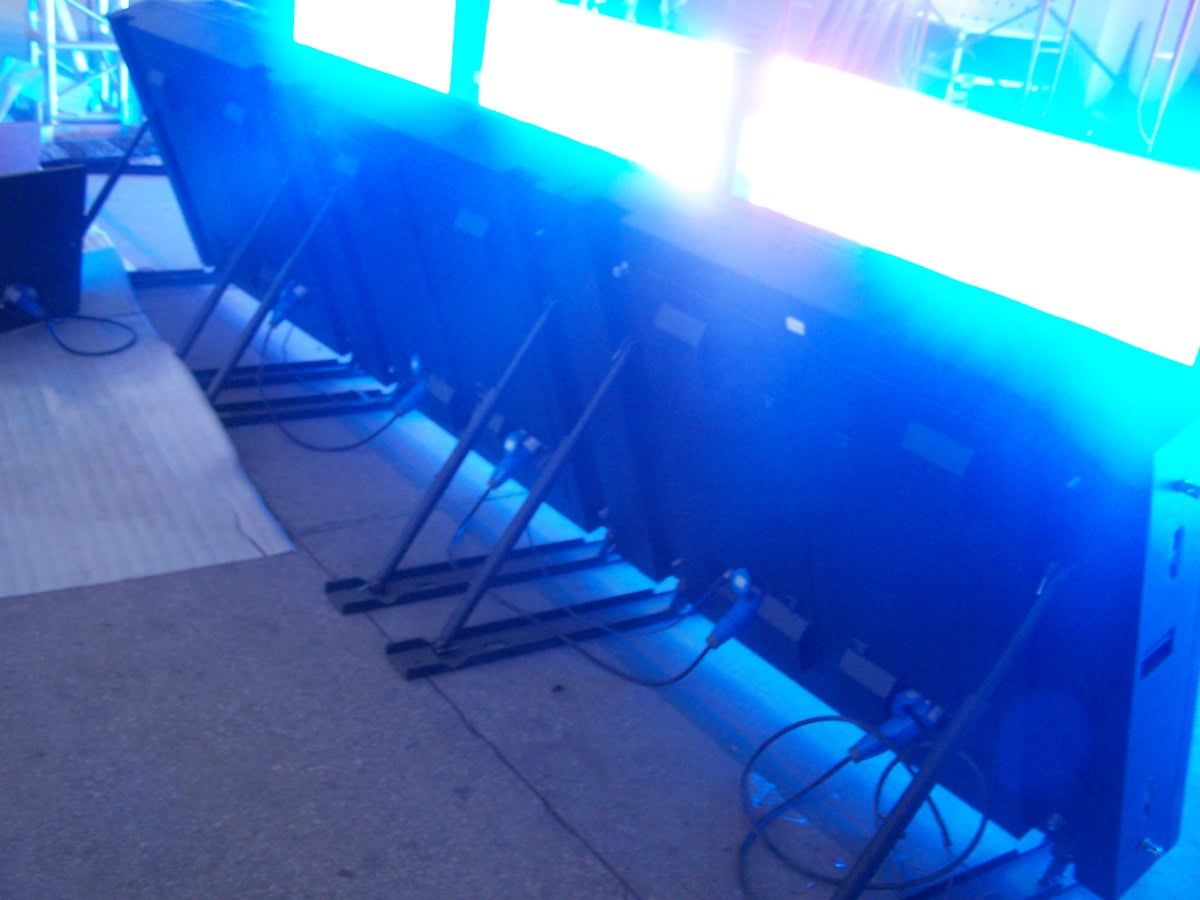

Perimeter LED Display P16
| Price: |
US $ 1/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
P16 Perimeter Outdoor Full Color LED Display Parameter
No.TypeFull Color
1Pixel Configuration: 2R+1G+1B
2Module Resolution: 16pixels(H)×16pixels(W)
3Module Dimension: 256 mm(H)×256mm(W)×160mm(L)
4Power Consumption(average): 400w/ m2
5Power Consumption(max): 800 w/ m2
6Density: 3906pixels/m2
7Brightness: >7000 nits
8Color: 16.7 M
9Brightness Control: Manual/Auto
10Gray Scale Rectification: rrectification
11Picture Regulation: Contrast/Chroma regulation/Module brightness regulation
12Drive Mode: Static
13Refresh Rate: 1080HZ
14Control Mode: Synchronization control
15Video Interface: S-Video, VGA, DVI etc.
16Life Time: 100,000 hours
17Mean Time To Failure: >10,000 hours
18Blind LED: None
19Temperature: -35°C~+55°C
20Relative Humidity: 10%-95%RH
21Display Flatness: The display:±1mm Gap between modules:1mm
22Display Information: Video, Animation, Picture, Text etc.
23Voltage: 220V±10%,380V±10%
24Communication Distance: <20km
|
SunYEX PERIMETER LED SCREEN FOR STADIUM |
|
Pixel pitch |
16 mm |
Module size |
256 x 128mm ,320×320mm |
|
Pixel configuration |
2R1G1B ,1R1G1B |
Module density |
16x8dots,20 sports perimeter led display ×20dots |
|
View angle |
120°/90° |
Pixel density |
3,906dots/m2 |
|
LED encapsulation |
DIP 546 ,DIP346 |
Refresh Rate |
≥3000Hz |
|
Driving Method |
static,constant current |
Max power consumption |
1000w/m2 |
|
Brightness |
>7000nit |
Average Power consumption |
350 w/m2 |
|
Cabinet size |
Normal 640 x 640mm or |
Cabinet material |
Aluminum alloy or |
|
Designed by requirements |
Iron, Steel |
|
Cabinet thickness |
< 8cm or |
Cabinet weight |
< 10kg/cabinet or |
|
Designed by requirements |
Designed by require |
|
Working voltage |
AC110 / 220V |
Working temp |
-20°Cto +60°C |
|
Best viewing distance |
>14m |
Working humidity |
10%~90% |
|
LED parameters |
R:625nm±5.0nm |
MTBF |
>5,000hours |
|
IV:400- 500mcd |
|
G:525 nm±2.5nm; |
Gray Level |
RGB/8192/14bit |
|
IV:1800 - 2200mcd |
|
B:470nm±2.5nm; |
Lifespan |
>100,000hours |
|
IV:350 - 450mcd |
|
Image processing |
Video denoising, rapid motion compensation, edge sharpening, edge smoothing, |
|
color coordinate conversation & control , grey scale transformation etc |
|
Brightness uniformity |
Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
|
Effective control distance |
Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km |
|
Color Temperature/contrast |
Brightness and contrast of red, green and blue can be adjusted by software, |
|
100 scales are available, color temperature is adjustable |
|
Input signal |
RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION |
|
Control system |
Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional) |
| Prod Model: |
SY-OF16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Pixel Density: |
3906 |
| Average Power Consumption: |
800W |
SunYEX is a high-tech enterprise specializing in professional R & D, production and selling of LED screens. Our main products include LED display, and other LED lighting fixture. During SunYEX's these years' high speed developing, SunYEX has been working on building a friendly and win-win relationship with partners. We have a wide range of international strategic partners, sharing the benefits brought by international cooperation and division of labor. The international strategy enhances our technology and management level, promotes international quality standard certification and improves its competitiveness in the industry. Additionally, our international strategic alliance speeds up our process of establishing global service system and sales network and our international market further supports our expansion of domestic system and the strategic framework of the whole market. Nowadays, SunYEX brand is more and more recognized and praised by the industry and a wide range of users, which is derived from our efficient work, quality awareness, service awareness and customer awareness formed over years.
With our company's technology level, we have established strong and steady partnership with the world's toppest organisations such as PHILIPS, Toshiba and Siemens in developing product and operating control systems which we are proud of our quality.
SunYEX owns the most advanced LED assembly machinery and a Category 100, 000 dust-free workshop and powerful anti-static system, managed by a highly professional team which is well-known in the LED display industry, adding R&D administration, manufacture and extensive testing area, we believe we are now in a position to offer the world the best reliable product and COMPETITIVE COST for customers in the worldwide markets.
Our main products of SunYEX includes: LED Full Color Display, LED Single/Bi-Color Display, LED Traffic Light, LED Pharmacy Cross Display, LED Digital Tube, LED Solar Light, LED linear strips, LED modules, LED wall washers, LED fluorescent light, LED lighting fixtures, LED neon flex, LED components, LED accessories and so on, all of which are widely used in urban lighting decoration, advertising light boxes backlight, indoor home decoration, stage lighting, project, lights and cars, etc.
SunYEX has a well-trained team including full experienced technicians and salesman; "product quality and customer satisfaction" is our main aim. More and more people continue choosing SunYEX for our excellent quality and unique well service, currently, 95% of our products have been sold in Europe and many other foreign markets.
Our target: To become a worldwide leading LED products provider within 5 years!
