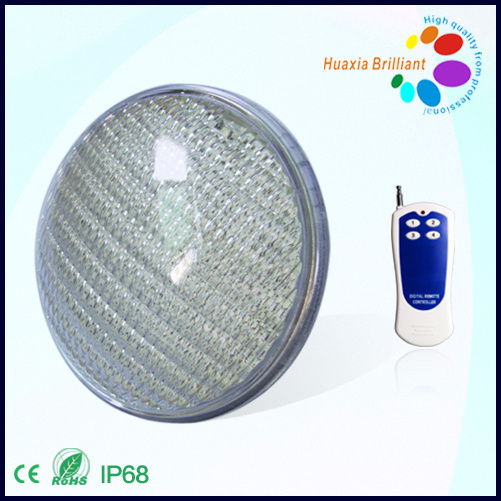

Remote Control RGB LED Swimming Pool Lamp
18W PAR56 LED POOL LIGHTS
1. Applications:
It is used in swimming pools, fountains, scenic ponds' illumination and decoration.
2. Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.
Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures
Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test
LED swimming pool light
1. Item No.: HX-P56-252-PC
2. Dimension(mm): 178*84mm
3. Material: Regular glass
4. Color: RGB/White/Green/Blue/Warm White
5. Voltage(V): AC 12
6. LED Qty(PCS): 252PCS
7. Power(w): 18watt
8. Net Weight (kg): 0.4
9. Packing: 12PCS per exported carton
| Item No. | LED Qty (pcs) | Wattage (w) | Voltage (v) | Control | Material | Dimension (mm) | IP Grade | Weight (KG) | Carton Size (mm) |
| HX-P56-252-RG | 252 | 18w | AC12 | 3 IN ONE Control: Automatic Control Remote Control Switch Control | regular glass | 178*114mm | IP68 | 0.75 | Inner Packing: |
| 217*217*137mm |
|
| HX-P56-351-RG | 351 | 24w | Outside Packing: |
| 490*490*490mm |
| 12pcs in one carton |
| HX-P56-501-RG | 501 | 35w | volume weight: 24kg/carton |
|
|
| HX-P56-558-RG | 558 | 40w | gross weight: 11kg/carton |
|
|
|
| 252 | 18w | AC12 | external control | pc | 178*84mm | IP68 | 0.4 | Inner Packing:
155*155*140mm |
|
|
| Outside Packing: 390*350*310mm |
| DMX512 |
| HX-P56-351-PC | 351 | 24w |
| 12pcs in one carton gross weight: 6kg/carton |
|
|
