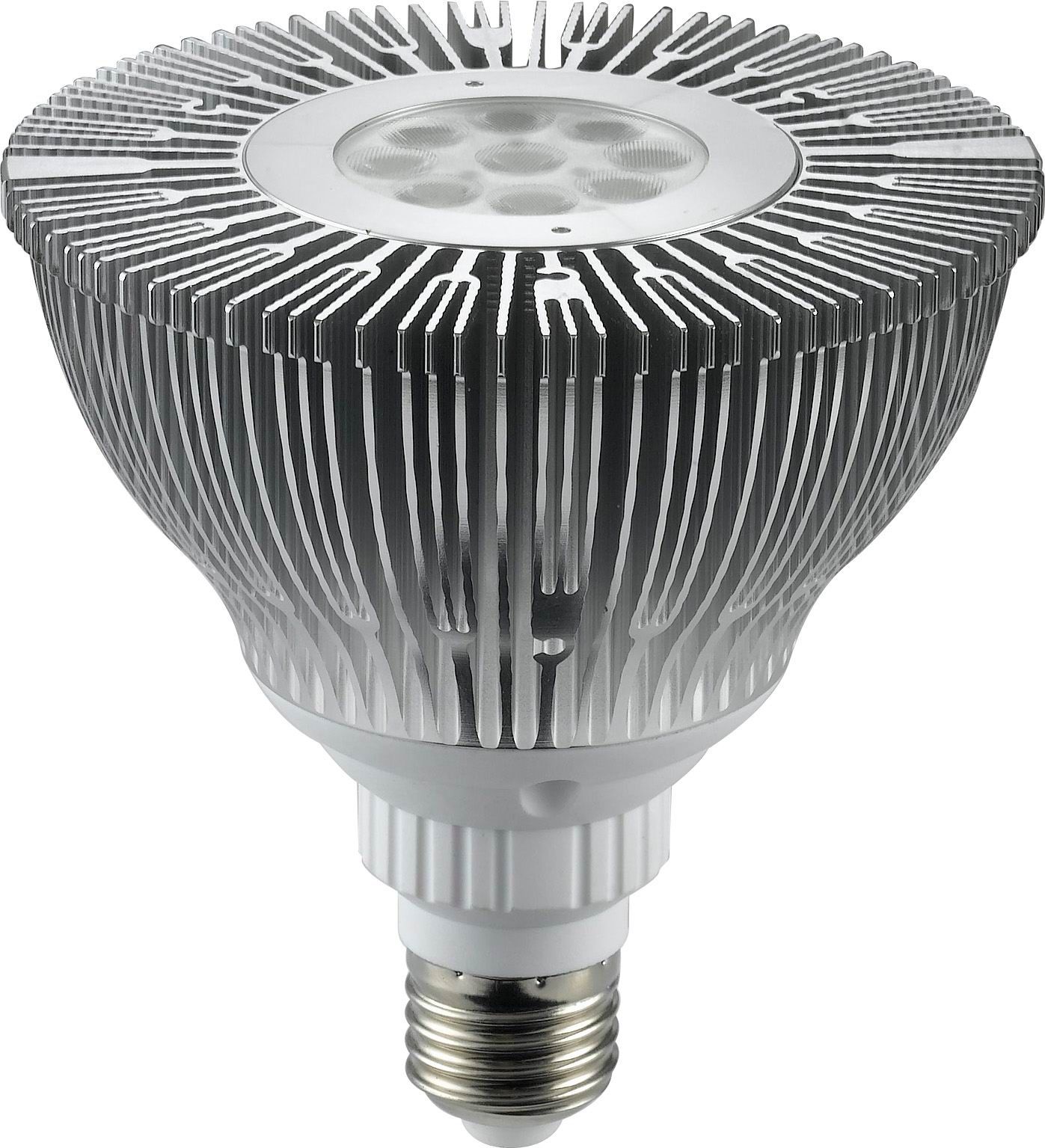

UL PAR38 LED spotlight, high power LED spotlight
1) color temperature: Warm white: 2, 700 ~3, 500k, cool white: 5, 000~6, 500k
2) beam angle: 15, 25, 45 degrees
3) CRI: Ra> 80
4) power factor: >0.9
5) dimmability: Compatible with triac dimmers on market such as lutron, leviton, legrand, osram, and ge etc. Dimming range is from 5~100% and very stable
6) LED type: CREE XPE
7) life span: 50, 000 hours
8) warranty: 2 years
9) certification: CE, RoHS
10) for each item, there is a lower price version with non dimmable and/or CREE xpc LED
11) housing color option: Natural aluminum and anodized white or black.
Characteristic
Item number: Bl-PAR38-9XPE
LED chip q'ty: 9PCS LED
Base type: E27/e26
LED type: CREE XPE
Applicable dimmers: Triac dimmer for lutron, leviton, legrand, orsam, CE etc.
Input voltage: 85~145V AC and 190~265V AC
Dimming range: 10%~100%
Input power: 16.7W
Output power: 13.4W
Size: Φ 120 x 125mm
Reflector efficiency: 90%
Output current: 350mA
Lumens: CREE XPE: Ww: 770lm, cw: 970lm
Color range: 2, 700~7, 000k
Beam angle: 15, 25, 45 degrees
Life span: >50, 000 hours
Body temperature: <65° C
LED working temperature: <72° C
CRI: Ra>80
Net weight: 550g
Housing material: Aluminium
No UV or IR radiation
Certification: CE, RoHS, c-tick, UL
Package:
Carton dimension 125x125x135cm, pack size: 24 PCS
|
Item Number |
WD-PAR38-9XPE-DIM |
|
Voltage |
85~145V AC 190~265V AC |
|
Lumens |
WW: 770lm CW: 970lm |
|
Dimmability |
YES |
|
Dimension |
diameter 120× 125mm |
|
Weight |
550g |
|
LED Type/ QTY |
CREE XPE/ 9pcs |
|
Power Consumption |
16.7W |
