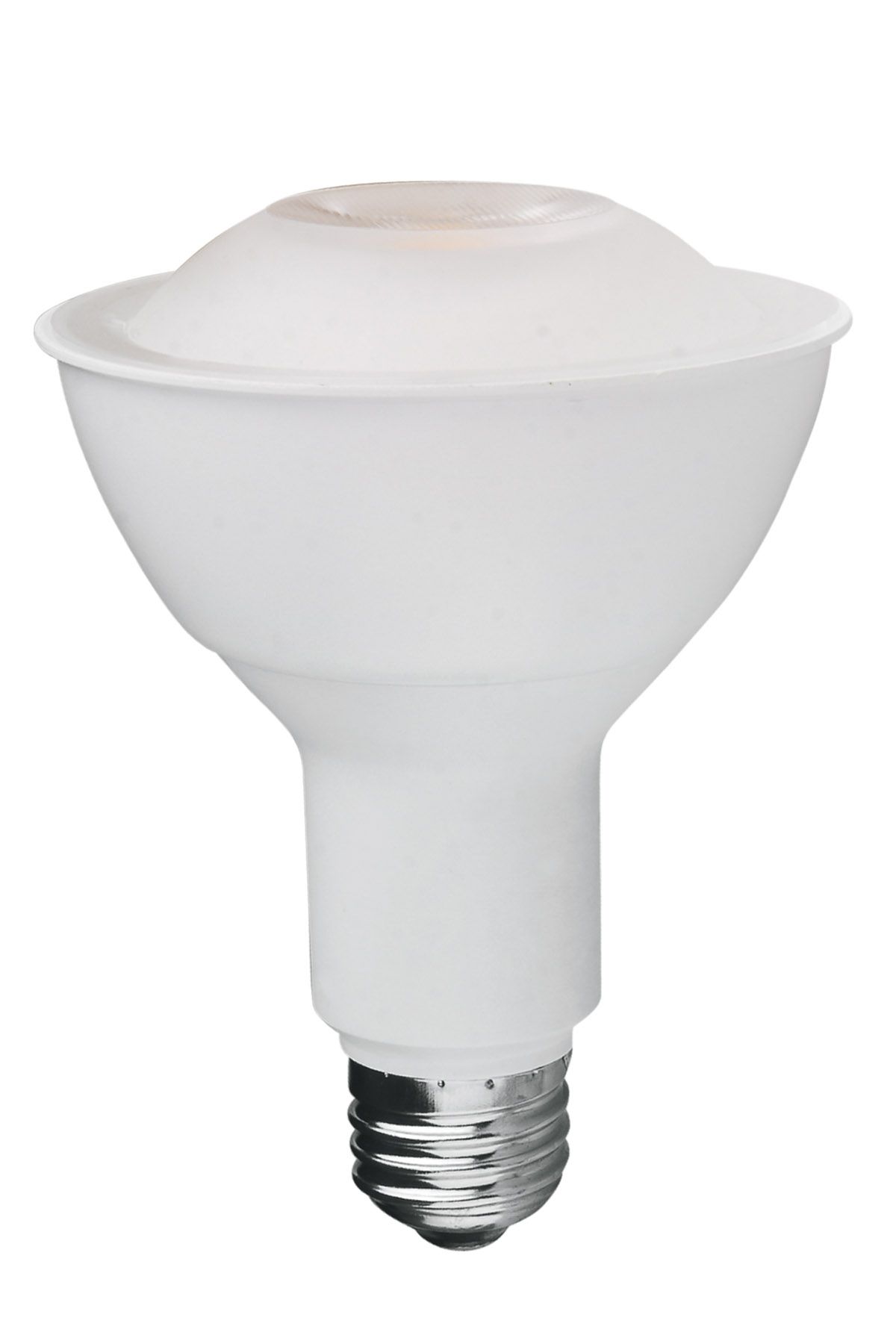

LED PAR light
This product is an indoor LED bulb with input voltage range from AC 1 08V to AC 132V. It is suitable for single PAR30 lighting fixture. Dimmer lighting fixture is not suitable.
Product feature
Input voltage: AC 108V~132V
Replace traditional PAR30 bulb
Quick light up, no flicker
No UV and radiation
Low power consumption, energy and money saving
Conforms to the green energy conservation and the RoHS standard
Operating temperature: -30~45 Celsius
Storage temperature: -40 ~80 Celsius
Long lifespan (30, 000 hours at ambient temperature 25 Celsius)
Able to be used in office, home, build construction or decoration illuminant and so on
Installation position
The dimension ofPAR30 bulb is compatible with bulb.
It is compatible with existing PAR30 bulb lighting fixture.
Installation method
Turn off the power of the lamps.
Dismantle the old bulb.
Put LED bulb back to the lamp stand and rotate to fix the bulb.
Check again if bulb and reflector are in proper position before power on.
Caution
Avoid moisture inleakage which will lead to a short circuit and cause a damage.
Do not detach the bulb while power is on to avoid a electric shock.
Avoid collision with any object.
This product is not suitable working under high dust, high salt harms or temperature higher than 60 degree centigrade environment.
Don't dismantle the LED bulb, by doing so will lead to void warranty.
Warranty for 30, 000 hours in condition of normal usage. Natural disaster is not covered.
|
P/N |
00L07001A210AA0 |
|
Modle |
LF-10WPAR30 |
|
Voltage(V) |
AC 120V |
|
LED QTY.(PCS) |
1 |
|
Power(W) |
10W |
|
Luminous Flux(LM) |
750LM,800LM |
|
Viewing Angle |
30 |
|
Ra |
80 |
|
Color Temperzture(K) |
3000K,5000K |
|
Size(mm) |
123*93 |
|
Lifetime |
30000h |
|
IP |
20 |
