P7.62 indoor full color LED display
High resolution
Lower power consumption
Mult-function
High quality
Indoor full color LED display

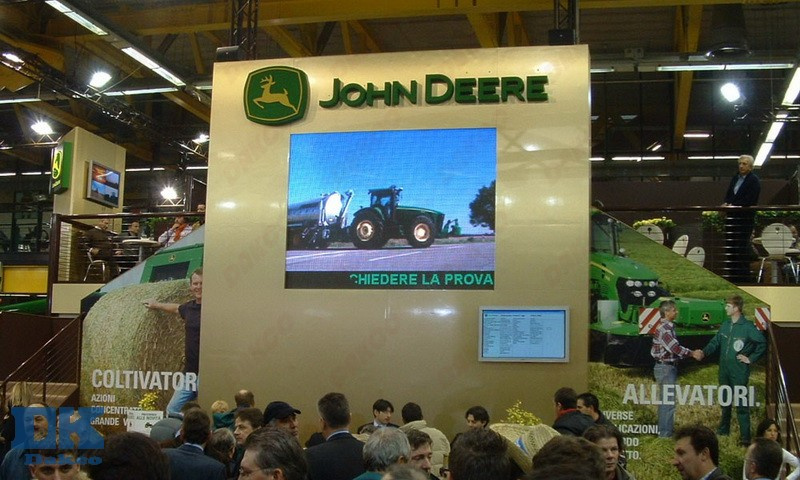

Features & Technical Specifications: 1. Wide application field & short ROI time: Comercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
3. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long liftetime and high brightness of our LED display screen sytem
4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
5. Long-term Brightness: 7000-nit brightness(for outdor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen sytem
7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main maketing promotion business.
|
Physical/Real pixel pitch(mm) |
7.62 |
|
Pixel density(dots/SQM)(physical/real) |
17222 |
|
Calibrated Brightness |
2100 nits(adjustable) |
|
Color temperature |
3, 500° — 9, 500° K(adjustable) |
|
Contrast ratio |
4, 000: 1 |
|
Brightness Adjustment |
100 grade auto-adjustment |
|
View angle(degree)(50% brightness) |
Horizontal: 160° (80° off center); Vertical: 160° (80° off center) |
|
Color Capability |
4.4 trillion |
|
Refresh rate(Hz) |
> 2400 Hz |
|
Frame frequency(Hz) |
> 60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
Video: PAL/NTSC Optioned: VGA, video, DVD, TV |
|
Protection grade |
IP54 front side/IP54 backside |
|
Operating temperature(Celsius degree) |
-20~+55' |
|
Storage temperature(Celsius degree) |
-30~+65' |
|
Operation Humidity(RH) |
0-95% |
|
Storage Humidity(RH) |
0-99% |
|
Lifetime(hours)(50% brightness) |
100, 000 hours |
|
Servicing |
Front and Back |
|
Power supply |
100-240V/50-60HZ |
|
Screen Operation mode: static |
1 |
|
LED Drive |
constant-current drive |
|
Power consumption(W/SQM): Maximum |
698 |
|
Power consumption(W/SQM): Average |
279 |
