Specifications
LED display module
1)competitive price
2)unique design structure
3)rich engineering experience
4)CE & RoHS certification

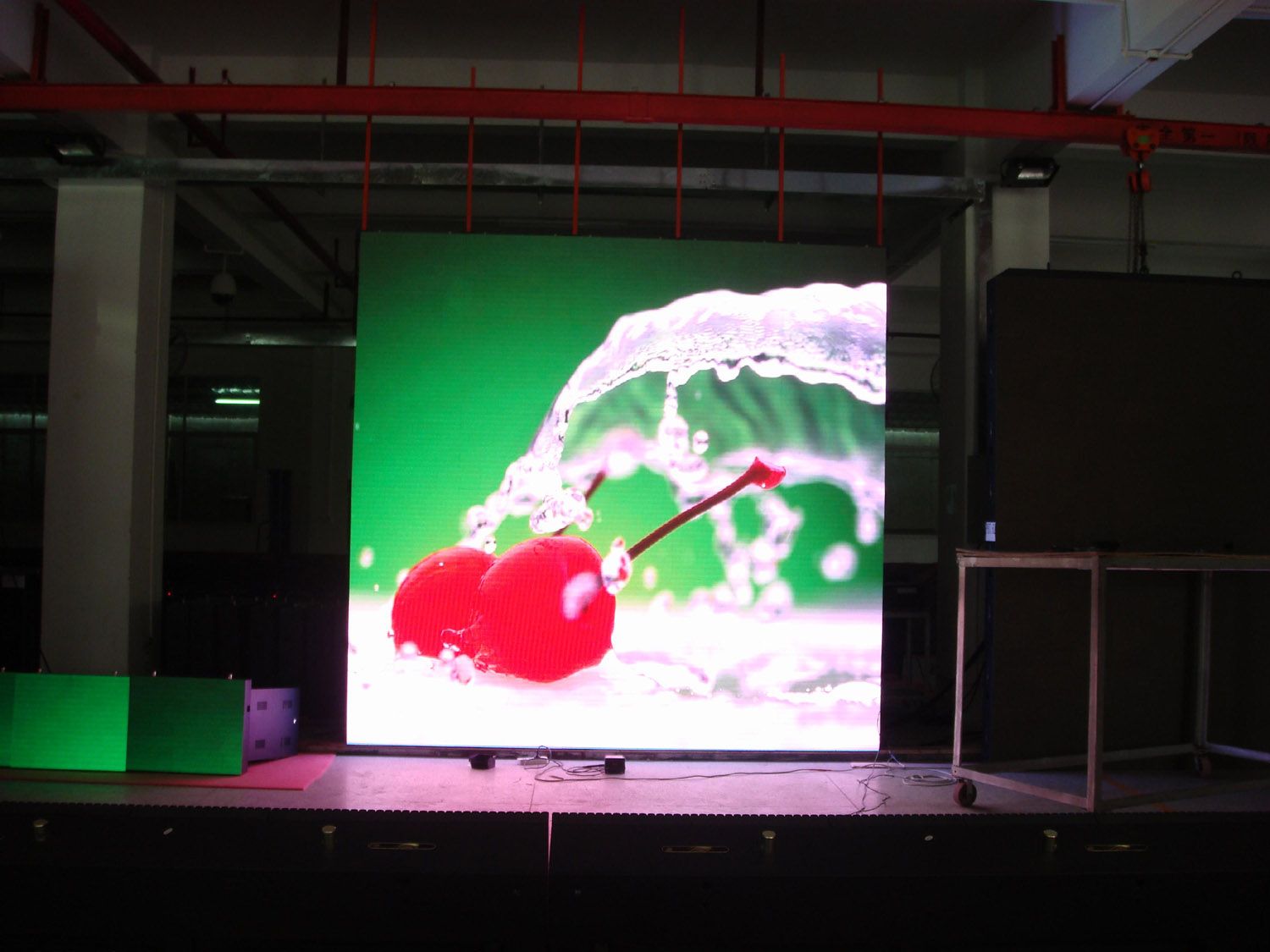

P7.62 Indoor 3 in 1 Full Color LED Display
Pixel pitch (mm) 7.62
Cabinet size (mm) 976*732
Brightness (nit) 1800
Module size (mm) 244*122
Pixel configuration SMD 3 in 1
Pixel matrix per module (DOT) 32*16
Pixel (DOT/s. Q. M) 17222
Viewing distance (Min) (m) 6
Gray scale (level) 4096
Refresh frequency (Hz) 600
Input power (max/avg) 650/260
Viewing angle-H (deg. ) 120 (+60/-60)
Viewing angle-V (deg. ) 60 (+30/-30)
Blind spot rate <1/10000
Color temperature (K) 6500
Ingress protection (front/rear) IP43
Input voltage (AC) 110 ~ 240
Input power frequency (Hz) 50 or 60
Signal input format (with video processor) AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Operating system Windows (2000/XP/Vista)
Control distance CAT5 cable: <100 m; Single fiber: <10 km
|
Item |
Parameter |
|
Pixel |
Physical pixel pitch: 7.62 mm |
|
Pixel configuration: 1R1G1B |
|
Module |
Module resolution: 32 x 16 pixels |
|
Module size: 244 x 122 mm |
|
Cabinet |
Physical resolution: 128x 128pixels |
|
Cabinet size: 976 x 976 x80mm |
|
Material: aluminum |
|
Weight: 8Kg |
|
Electricity parameter |
Brightness: ≥2000 nits |
|
Physical density: 17,222 pixels/m 2 |
|
Whole display flatness: ≤ 1mm juncture |
|
Best view distance: ≥6m |
|
Best view angle: Horizontal ±60°, Vertical ±60° |
|
Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C |
|
Driving method: Constant driving current Scan: 1/8 |
|
Refresh frequency: ≥300Hz |
|
Frame rate: ≥ 60Hz |
|
Working Voltage: DC 5V |
|
Power supply: AC 110 / 220V, 50/60Hz |
|
Average power consumption:≤500w/m2 |
|
Max power consumption: ≥1000w/m2 |
|
Control system |
Control system: ZedcV8/Linsn^(at customers' choice) |
