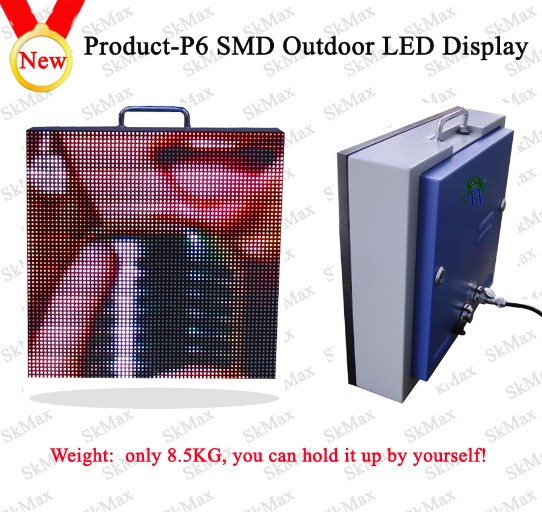

New Product Detail:
> Type: SM-P6
> Pixel: 6mm
> Light: The Cabinet size: 480mm*480mm, weight: 8.5KG; You can hold it up by yourself, save time for installation. (The weight of traditional LED Display is above 25KG with the same size)
> Thin: The cabinet is made by aluminum alloy die-casts with depth 8cm, and high intensity, high tenacity, high-accuracy, not distortion. (The depth of traditional LED Display is about 16cm)
> Fast: It is fast to install and disassembled, you can install the cabinet for 10 second, so fast so easy!
> Easy: The cabinet adopted unit module design, you can install and distortion the screen for any place, and simply maintenance.
> Compatible: New structure design it can satisfy the requirements, indoor Sling installation, inset installation etc.
> Low: Good heat dispersion function, so low consumption; Low noise; Light weight, so low transport cost; Low cost of installation.
> Strong control system technology: High frequency scanning, High color processor, auto color correction etc, which can make the LED display more perfect.
P16 Outdoor full color LED display
LED display type: SM-P6
Pixel configuration: SMD3535
Pixel pitch: 6mm
Grayscale (CD/m2): >6, 000
Scan method: 1/8
Viewing angle(H/V): 120° / 120° ;
Viewing distance: 6-100m
Module pixel resolution(pixels): 32 x 16
Module dimension: 192mm x 96mm
Cabinet resolution(pixels): 64 x 64
Cabinet dimension: 384mm x 384mm
Cabinet depth: 8cm
Lifetime(hrs): 10, 0000
Maximum power consumption: 1100 (W/m2)
Average power EXHIBITION GOODS consumption: 275 (W/m2)
Refresh rate(Hz): 2, 000Hz
Grey grade: 8192(TYP)/65536(MAX)
Brightness adjustment: 100 manual/100 auto/100 timing
Data transfer method: Network, optical fiber
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
