Features:
1. Super slim cabinet and its maximum thickness is only 75mm.
2. Super light cabinet and its weight is only 8.5kg/pcs.
3. Using Neutrik power flight connector and easily install and stable performance.
4. Independent plastic power box in the back can be uninstalled individually and replaced.
5. Its brightness is above 1800NIT and rainproof and available in a variety of indoor and outdoor rental accasions.
6. Transparent cabinet can be lucent and ventilate in its structure which can meet different requirements of stage lighting design.
7. Cabinet with rapid rotating of hanging lock and manual compression that can be avoided accidental dropping off and make the screen connection be safer.
8. Support for hanging and stacking installation.

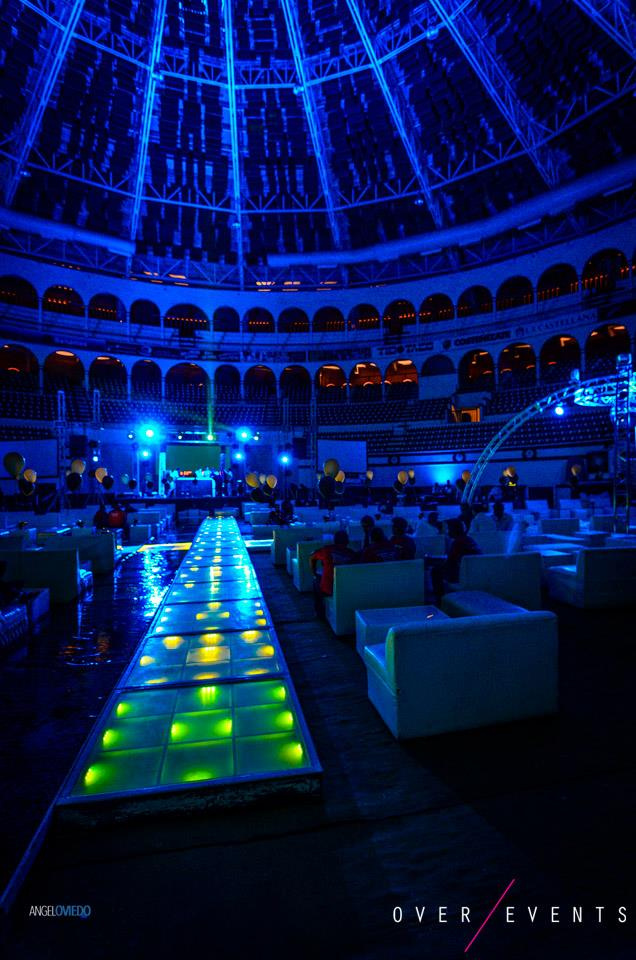

9. Can be used as dancefloor.
Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities
|
NO. |
Item |
Parameter |
|
1 |
Model |
P6.4 |
P8 |
|
2 |
Pixel pitch |
6.4mm |
8mm |
|
3 |
Pixel configuration |
1R1G1B |
1R1G1B |
|
4 |
LED type |
SMD3528 |
SMD3528 |
|
5 |
Module size |
256x256 |
256x256 |
|
6 |
Panel Depth |
75mm |
75mm |
|
7 |
Module resolution |
40x40 |
32x32 |
|
8 |
Panel resolution |
80x80 |
64x64 |
|
9 |
Panel size |
512x512mm |
512x512x75mm |
|
10 |
Density |
24414 dots/m2 |
15625 dots/m2 |
|
11 |
Brightness |
≥1800 NIT |
≥2500 NIT |
|
12 |
Scan method |
1/5 |
1/4 |
|
13 |
Best view distance |
≥10m |
≥8m |
|
14 |
Max. power consumption |
300W/panel |
|
15 |
Ave. power consumption |
180W/panel |
|
16 |
Weight |
8.5Kg |
|
17 |
Grey scale |
65536 level |
|
18 |
Colors |
281 trillion |
|
19 |
Refresh rate |
≥960Hz |
|
20 |
View angle |
Horizontal: 120°, Vertical: 120° |
|
21 |
Color temperature |
6500-9500K |
|
22 |
Frame frequency |
≥60Hz |
|
23 |
Out of control pixel rate |
<1/10000 |
|
24 |
MTBF |
>5000 hours |
|
25 |
Lifespan |
50000 hours |
|
26 |
Control mode |
Synchronous display with control PC by DVI |
|
27 |
Working voltage |
AC 100/200v 50-60Hz |
|
28 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
29 |
Operation temperature |
-30 to +60 |
|
30 |
Operation Humdity |
10% to 95% |
|
31 |
Protection level |
IP65 |
