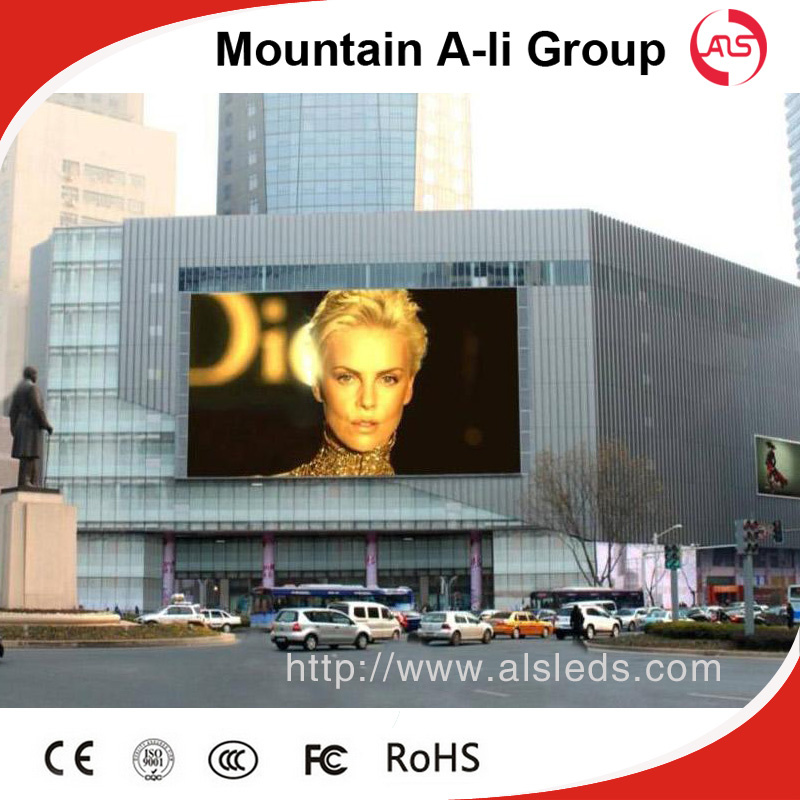

P5 SMD Outdoor Panel LED Display
Price: |
US $ 1270/Square Meter |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Square Meter |
Pay Type: |
T/T,Western Union |
Our features and advantages:1.High quality: Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology. The products support multiple display modes.3.Easy maintenance:
Can fix the single point to save the maintenance cost.4.Good uniformity:
Brightness difference within 10% between any two LED, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well5.Price No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.Remarks1.Payment term: 30% T/T in advance and balance before delivery. 2.Delivery time: Within 15 working days after 30% advance payment. 3.Free training: You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on. 4.Installation: We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control. 5.Service after sales: If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.The specifications of modules |
|
|
Items | Parameter |
|
Product Model | P5 Outdoor Full Color LED Module |
|
Module size | 160mm*160mm |
|
Pixel pitch | 6mm |
|
Pixel density | 40000dots/m2 |
|
Pixel configuration | 1R1G1B |
|
Module resolution | 32dots(W)*32dots |
|
Module maximum power consumption | 25W |
|
Module Thickness | 2.66CM |
|
Module Weight | 0.21kg |
|
Driving method | Constant Current Driving |
|
Scanning method | 1/8scan |
|
Interface | HUB75B |
|
Brightness | ≥1600cd/m2 |
|
The specifications of cabinets |
|
|
Cabinet size | 640mm*640mm |
|
Module quantity | 16pcs |
|
Power supply | 5V/40A 5V/60A |
|
Cabinet resolution | 128*128dots |
|
Optimal viewing distance | 5M~30M |
|
Optimal viewing angle | 160°(W) 120°(H) |
|
RH Working temperature | (Work :-20°C~+60°C) |
|
System operating humility | 10%-95% |
|
The specifications of power supplier |
|
|
Operating Voltage | AC220V±10% |
|
Average power consumption | 300W/H |
|
Maximum power consumption | ≤500W/m2 |
|
Electric current | ≤20mA(single LED) |
|
The specifications of control card |
|
Control Panels | Pentium4 or above |
|
Operating system | WIN98/2000/NT/XP |
|
Control model | Synchronization with PC |
|
The specifications of the main technical parameters |
|
|
Driving device | Constant Current Driving |
|
Refresh rate | ≥400HZ |
|
Grey scale | RGB Each 256, can display 16.7M colors) |
|
MTBF | ≥9000hours |
|
Power switch | Automatic Switch |
|
Display Mode | 800*600/1024*768/ |
|
Prod Model: |
P5 Outdoor Surface Mounted Moundle |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
160*160mm |
Optimal Viewing Distance: |
5m~30m |
Mbtf: |
9000hours |
Warranty Period: |
2years |
Brightness: |
More Than 6500CD |
Optimal Viewing Angle: |
160°(W) /120°(H) |
Cabinet Resolution: |
128*128dots |
Max Power: |
25W |
Module Thickness: |
26.6mm |
Cabinet Size: |
640mm*640mm |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
300W / m² |
Scanning Mode: |
1/8 Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
FCC |
Pixel Pitch: |
5mm |
Pixel Density: |
40,000 Dots / M² |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
