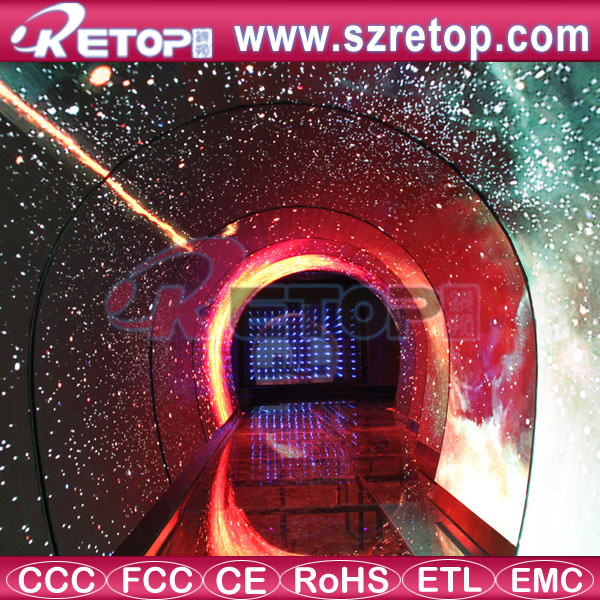

Retop's low pixel pitch, high definition and easy installation P4 indoor cabinet has come into being under the current situation where there are more and more rental product series in the LED market. Specially designed according to the features of LED products by professional engineers, this cabinet is quaint and light with weight of only 8.5KG, which is easy for transporting and dismantling. Curved design for the back side makes the combination of interface nature
1. High-definition rental product
Retop controls the pixel pitch to 4mm to produce HD images for rental product. People can be as close as 3-5 meters to the screen and get good view effects at the same time.
2. Light weight
Extremely light weight with only 8.5KG for a module size of 512mm*512mm, which can be easily set up, dismantled and transported.
3. Fast setting-up design
Special design for rental application with fast locks and simple tool setting-up method, the display can be installed quickly to save time.
4. Calibration
Calibration of the brightness and color of modules can improve the consistence and solve the problem of light fades after long time usage.
5. Cost effective
Specially designed for price-sensitive market, this cabinet can be produced with low cost but with high quality. In addition, daily operation is simple and maintenance is easy. The mass production also helps to save the cost and shortens the delivery time.
|
LAMP |
LED Type |
SMD 3-in-1 |
|
Wave length |
R: 620 nm |
|
G: 524 nm |
|
B: 468 nm |
|
BOARD |
Pixel configuration |
1R1G1B |
|
LED driving method |
1/16 dynamic scan |
|
Pixels |
64 |
* |
64 |
(W*H) |
|
Pixel pitch |
4 |
mm |
|
Led board size |
256 |
mm |
* |
256 |
mm |
* |
12 |
mm |
(W*H*D) |
|
MODULE |
Led boards |
2 |
* |
2 |
(W*H) |
|
Pixels |
128 |
* |
128 |
(W*H) |
|
Module area |
0.26 |
m 2 |
|
Module size |
512 |
mm |
* |
512 |
mm |
* |
80 |
mm |
(W*H*D) |
|
Net weight |
8 |
kg |
(aluminum) |
|
Power |
AC220/110 ± 10%, 47~63Hz |
|
Water proof |
N/A |
|
Serviceability |
Rear service |
|
DISPLAY |
Max. power consumption |
≤ |
930 |
W/m 2 |
|
Avg. power consumption |
≤ |
326 |
W/m 2 |
|
Max. current (208V 60Hz) |
≤ |
4.97 |
A/m 2 |
|
Hor. viewing angle(min 50% brightness) |
120° |
|
Vert. viewing angle(min 50% brightness) |
120° |
|
Brightness |
White SMD ≥1200 cd/m 2 ; Black SMD ≥1000 cd/m 2 |
|
Pixel density |
62500 |
/m 2 |
|
Power factor |
>0.9 |
|
Certifications |
CCC |
|
Contrast ratio |
2000:1 |
|
Operating temperature |
-20ºC to +60ºC |
|
Operating humidity |
20% to 90% |
|
Lifetime (50% brightness) |
100,000 hours |
|
Processing |
12 bit |
|
Colors |
687 billion |
|
Refresh rate |
≥1200 Hz |
|
Frame rate |
60 fps |
|
Brightness level |
Manual 100 levels,automatically 16 levels. |
