Indoor Slim LED Rental Display-512series
P4
Product description
| LED specification: |
| NO. | Color | Chip brand | Wavelength | View Angle | Place of origin |
| 1 | Red | SILAN | 625nm | 140°/140° | China |
| 2 | Green | SILAN | 520nm | 140°/140° | China |
| 3 | Blue | SILAN | 467nm | 140°/140° | China |
| Cabinet specification: |
| NO. | Item | Parameter |
| 1 | Model | HTS-IRP-4 |
| 2 | Pixel pitch | 4mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD2020 Black-face |
| 5 | Module size | 256*256mm |
| 6 | Module resolution | 64*64 |
| 7 | Cabinet resolution | 128*128 |
| 8 | Cabinet size | 512*512mm |
| 9 | depth | 75mm |
| 10 | Density | 62500 dots per square meter |
| 11 | Brightness | ≥1400 NIT |
| 12 | Best view distance | ≥4m |
| 13 | Max. power consumption | 300W |
| 14 | Ave. power consumption | 180W |
| 15 | Cabinet material | Die-casting aluminum |
| 16 | Weight/tile | 8.5 KG |
| 17 | Weight/SG.M | 32KG |
| 18 | Colors | 281 trillion |
| 19 | Refresh rate | ≥960Hz |
| 20 | View angle | 140 degree for vertical and horizontal |
| 21 | Out of control pixel rate | <1/10000 |
| 22 | MTBF | >5000 hours |
| 23 | Lifespan | 100000 hours |
| 24 | Signal input source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| 25 | Working voltage | AC 100/200v 50-60Hz |
| 26 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
| 27 | Operation environment | Temperature: -20 to +40, Humidity: 10%-80% |
| 28 | Protection level | Indoor |

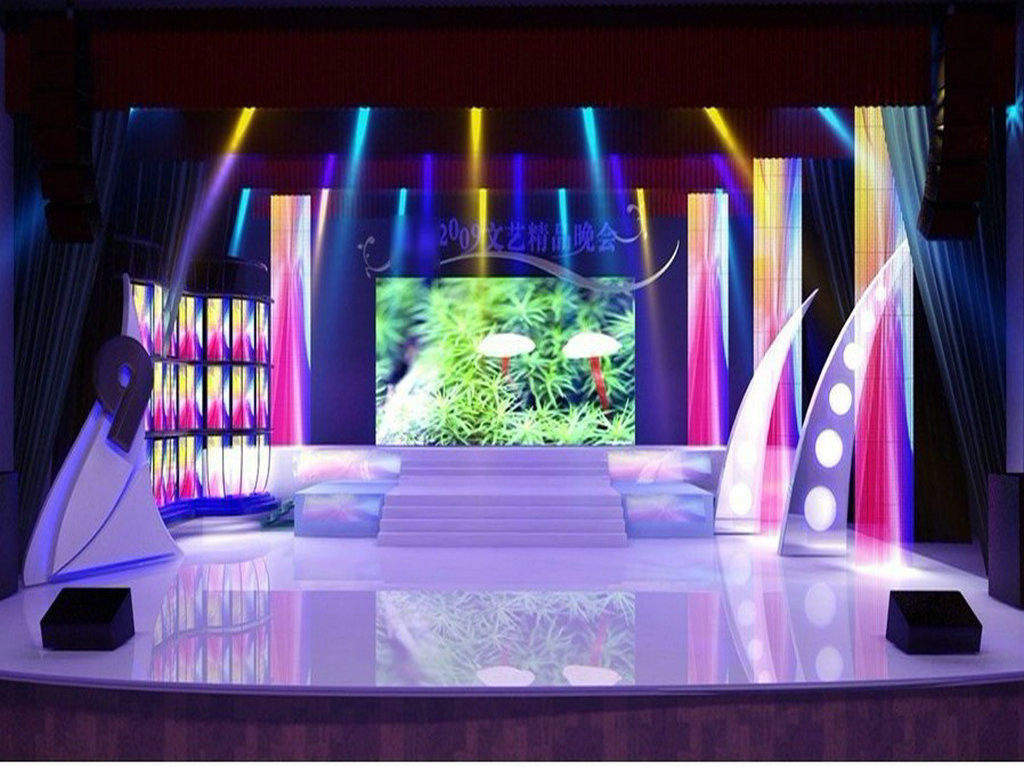

Application: Stage Performance, Advertising, Shopping Guide
System Operating Platform: Win XP/Win7 /Win8/ Win2000
Certification: CE, ROHS, UL, CCC, ETL
It can be widely used in Indoor.
Slim and lightweight aluminum die-casting cabinet can be fast installed.
Features:
1,Super slim cabinet and maximum thickness is only 75mm.
2,Super light cabinet and it's only 8.5kg/pcs.
3,Different colors of back cover can be satisfied with people's demand in different feeling.
4,Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ.
5. The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid accidental collision and dropping off and connect the screen is safer.
6,Based on unique back cover of design, according to the site conditions, it can be selected a variety of quick repairing method.
7,Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure and its flatness ≤0.5mm.
8,Using NEUTRIK() flight connector can make sure that LED screen is connected to be faster and it works more steadily.
9,Using DC cooling fan can effectively reduce the noise when it's used in indoors.
10,Support for stacking and hanging installation.
11. No tools to assemble and dismantle, less worker and saves the cost
12. It suit for hanging-up, each hanging beam can bearing 10-15 PCS cabinets
Packing reference:(Carton , wooden case , flight case)
