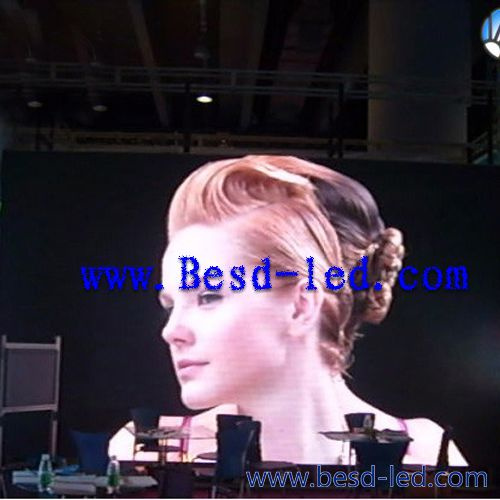

P4 Indoor Fullcolor LED Display (BESD-IFP4)
| Price: |
US $ 1-5000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T,Western Union |
P4 Indoor LED display/P4 Indoor LED panel/P4 Indoor LED panels/P4 Indoor LED display screen/LED Video Display/LED Video Display Screen/P4 LED Video Display Screen/P4 LED Video Display
Brief introduction for indoor pH4mm :
1 Definition : 62500dots/m2
2 LED type : SMD3in1 (0606 or 2121)
3 Brightness > 2200 nits
4 Features: High density video image
5 Advantage: Min viewing distance 2 meter for events showing
Advantage of P4 mobile rental LED screen :
1, Die-casting Alluminum OR Alluminum alloy cabinet for optional by requirements .
2, Cabinet dimension 576x576mm OR 512x512mm OR designed by requirments
3, Aluminum cabinet weight 10KG/cabinet with cables, connectors, power supply, and so on.
4, Cabinet thcikness 5 -7cm for portable assembly / disassembly
5, Fast lock for installation / disassembly
6, Both Back door and Front access , for maintenance
Product featues:
1 High definition (62500dots/sqm) with an outstanding image and video quality for indoor usage
2 Wide view angle:140 in horizonal and 140 in vertical.for indoor full color
3 High refresh rate (greater than 960Hz) with software adjustable, suitable for filming.
4 High grayscale (16 bits) with perfect visual performance.
5 High Contras ratio (3000:1) with black mask and black coating technique.
6 High color uniformity and clear image can bring you a vivid audio visual effect.
7 Special design and advanced SMT technology for indoor LED screen
improves the heat dissipation for LED sign
8 High reliability and long lifespan (MTBF ≥ 5000 hours).
9 Optional for upgrade:Ultra-High refresh rate (> 3000 Hz) with software adjustable, suitable for filming.
10 Low power consumption(500W/sqm) thus more energy saving.
Regular shape and special shape (such as curve, round) can be designed.
11 Light weight (less than 10KG/cabinet) with high strengthen cabinet.slim thickness < 7cm
Offer normal aluminum alloy hanging cabinet, Die-casting aluminum cabinet,
Easy for assembling LED sign panel and connection with the connector added.
Fast and easy to assemble and dismantle.
Both front access and rear access are available.
12 For reference other indoor full color LED display seriese
All Items :BESD-IFP4,BESD-IFP5,BESD-IFP6,BESD-IFP7.62,BESD-IFP8,BESD-IFP10.BESD-IFP31.25
|
Model:BESD-IFP4 |
|
Pixel pitch |
4mm |
Module size |
256x128mm |
|
Pixel configuration |
1R1G1B |
Module density |
64x32dots |
|
View angel |
140°/140° |
Pixel density |
62,500dots/sqm |
|
LED encapsulation |
SMD1616 |
Refresh Rate |
≥400Hz or ≥2000Hz |
|
Driving Method |
1/8 scan, constant current |
Max power consumption |
1400w/sqm |
|
Brightness |
>2200nits |
Type Power consumption |
500 w/sqm |
|
Working voltage |
AC110 / 220V +- 15% |
Working temp |
-20to +60 degree |
|
Best viewing distance |
>4 m |
Working humidity |
35%~85% |
|
LED parameters |
R: 625nm±5.0nm;
IV:180-200mcd |
MTBF |
>5,000hours |
G: 525nm±2.5nm;
IV:95-105mcd |
Gray Level |
>8192 grade |
B: 470nm±2.5nm;
IV:330-360mcd |
Lifespan |
>100,000hours |
|
Image processing |
Video denoising, rapid motion compensation, edge sharpening, edge smoothing,
color coordinate conversation&control , grey scale transformation etc |
|
Brightness uniformity |
Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
|
Effective control distance |
Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km |
|
Color Temperature/contrast |
Brightness and contrast of red, green and blue can be adjusted by software,
100 scales are available, color temperature is adjustable |
|
Input signal |
RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION |
|
Control system |
Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional) |
| Prod Model: |
BESD-IFP4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixels: |
4mm |
| Pixel Composition: |
1r1g1b |
| Pixel Density(Dots/M2): |
62500 |
| Brightness(CD/M2): |
1800 |
| Viewing Distance(M): |
≥ 4 |
| View Angle: |
H: 150°, V: 150° |
| Gray Scale(Level): |
1024 |
| Display Card: |
DVI Card |
| Control Mode: |
Synchronous |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Application: |
Advertising |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN2000 |
| Certification: |
CE RoHS |
| Pixel Density: |
62500DOT/M&Sup2 |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
