P4 Indoor Full Color LED Advertising Display (LED Display)
| Price: |
US $ 1600/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Product DetailsBasic Info.Model NO.: P4
Display Type: Video Display
Tube Chip Color: Full Color
IP Rating: IP40
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 4mm
Display Function: Video Display
Scanning Mode: 1/12 Scan
Certification: CE, RoHS
Pixel Density: 62500dot / m²
Average Power Consumption: 600W / m²
Pixels Pitch: 4mm
Configuration: 1R1G1B
Work Method:
1/12Pixel LED:
SMD 2020Driving IC:
MBI5024Density: 62500dots/M2
White Balance Luminance:
≥ 1700CD/M2Export Markets: Global
Additional Info.Trademark: NICK
Packing: Wooden Case or Fly Case
Standard: PH4mm
Origin: Shenzhen
Production Capacity: 5000 Sqm Per Month
Product Description*Weatherproof to IP40 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 1700 nits onwards
NICK full color outdoor led electronic display has many advantages as following:1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity.
5. Extra-high Brightness.
6. The LED display screen is comprised by the cabinet.
7. The LED Display cabinet has a fixed size(standard size).
8. We can expand the size of the LED display according to our requirement based on the cabinet size.
9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
10. Having good lightening accordance and no mosaic.
11.
Having larger viewing angle: Horizontal angle 110 degree / elevation angle 110 degree. Getting vivid effect within any position of the viewing range.12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
13. Good heat emission capability.
14. Environmental-friendly.
15. We can offer high quality outdoor led display, indoor led display, led screen, led sign, led advertising display, led electronic display, led display,led screen,led module,led sign,led clock,outdoor full color led display,led billboard,led display screen,led panel,led display panel,led,display,outdoor led display,led display board,p10 led module,led board,led outdoor display,led display module,led display outdoor,display board,sign board,scoreboard,billboard,advertising display,football,led curtain,advertising,led video wall,car video,led controller,led signs,p10,taxi led advertising,7 segment display,color tv,hd led display,sign,led pixel 12mm,digital display,display screen,led module display,led sign board,led tv display,and so on.Certifications of NICK

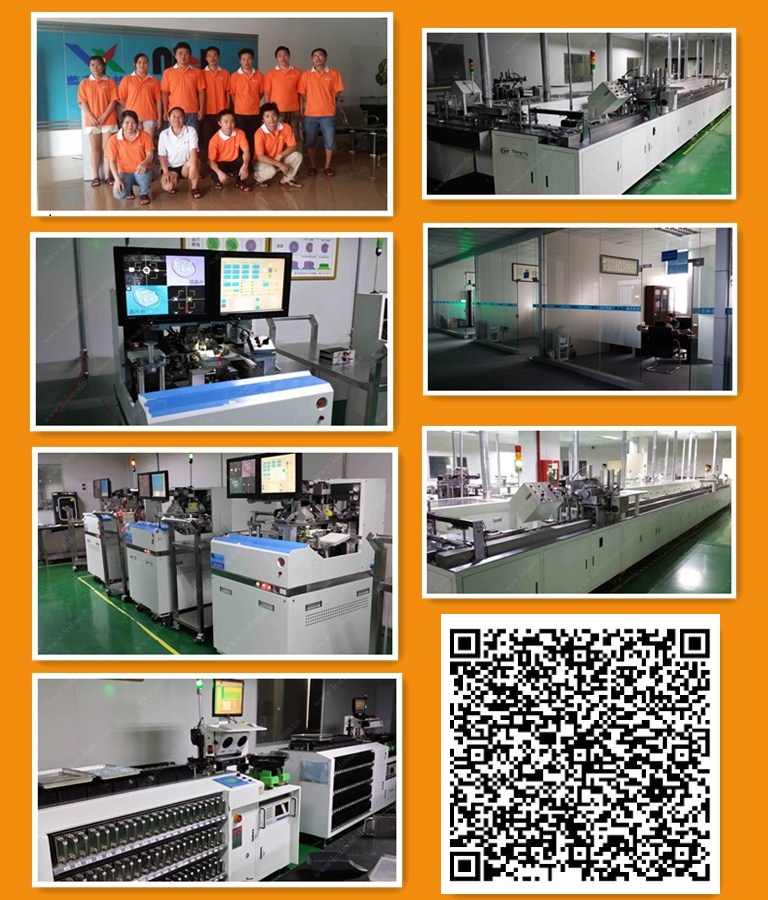

Work Shop of NICK
NICK Indoor Full Color LED Display
|
SMD P4 Indoor Full Color LED Display (192mm*192mm) |
|
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1. |
|
Pixel |
Item |
Parameter |
|
Real Pixel pitch |
4mm |
|
Pixel composition |
1 red, 1 green and 1 blue LED |
|
Module |
Module resolution |
48 x48 =2304pixels |
|
Module size |
192mm x192mm |
|
Cabinet |
Cabinet size |
576mm x576mm x 88mm |
|
Cabinet resolution |
Real pixel: 20736pixels |
|
Cabinet materials |
Cold rolled steel (mixed Iron & steel) |
|
Screen |
Physical Resolution /sqm |
62500pixels/sqm |
|
Brightness |
≥ 1700cd/sqm |
|
Brightness adjustment |
256 level automatically |
|
Scanning method |
1/12 scan & physical pixel |
|
Drive methods |
Constant current drive |
|
Best Viewing angle |
Horizontal: 110 degrees, vertical: 110 degrees, |
|
Grey scale |
65536 levels |
|
Color processing |
16bit |
|
Display colors |
4.4trillion |
|
Contrast ratio |
2000: 1 |
|
Frame rate |
> 60 frames/sec |
|
Refresh rate |
1000-3000HZ(no flickers whilecamcorder recording) |
|
Control method |
Synchronized with computer monitor |
|
Lifetime |
> 100, 000 hours |
|
Defects rate |
≤ 0.0001 |
|
Operating voltage |
AC220V± 15% , 50/60HZ |
|
Screen power consumption |
Max: 1500w/sqm; Average: 600w/sqm |
|
Color temperature |
6500K± 500 |
|
Control distance. |
100 m(no repeating) by net line; Optical fiber: 500m- 10km |
|
IP level |
IP40 in the front, IP40 at the back |
|
Operating temperature |
_ 20degree--+60degree |
|
Operating ambient humidity |
10%_ 95%RH |
| Prod Model: |
NK-P4-SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
192mm*192mm (SMD) |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Certification: |
RoHS |
| Average Power Consumption: |
600W / m² |
| IP Rating: |
IP40 |
| Pixel Pitch: |
4mm |
| Scanning Mode: |
1/12 |
| Pixel Density: |
62500 |
