4R outdoor single color LED

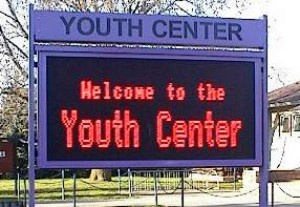

Information showing system is the main use of LED billboard: Train station & bus station digital billboards, air port information showing system, street shop LED message board.
Attrative and high level brightnes make it the only solution for traffic information showing system. In all the moden air port, bus & train statation, sea port, government halls, stock and bank halls, all were already equiped with the single color/tri color LED panel system.
P10mm outdoor single red/yellow color and P16mm & P20mm outdoor tri color, P6mm & 7.62mm indoor single & tri color is the most comon use model.
|
Pixel Configuration |
4R |
|
Physical/Real pixel pitch(mm) |
25 |
|
Pixel density(dots/SQM)(physical/real) |
1600 |
|
Calibrated Brightness |
2500 nits(adjustable) |
|
Brightness Adjustment |
100 grade auto-adjustment |
|
View angle(degree)(50% brightness) |
Horizontal: 120° (60° off center); Vertical: 70° (+25° /-45° off center) |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
Video: PAL/NTSC Optioned: VGA, video, DVD, TV |
|
Protection grade |
IP65 front side/IP54 backside |
|
Operating temperature(Celsius degree) |
-20~+55' |
|
Storage temperature(Celsius degree) |
-30~+55' |
|
Operation Humidity(RH) |
0-95% |
|
Storage Humidity(RH) |
0-99% |
|
Lifetime(hours)(50% brightness) |
100, 000 hours |
|
Servicing |
Front and Back |
|
Power supply |
100-240V/50-60HZ |
