1) Advanced digital technology for LED video display, LED cartoon display, graphics LED display, LED text display, pictures LED display and etc.
2) Environmental-protection and energy-saving LED display.
3) This series of LED display is widely used in shopping centre, square, airport, trainstation and etc.

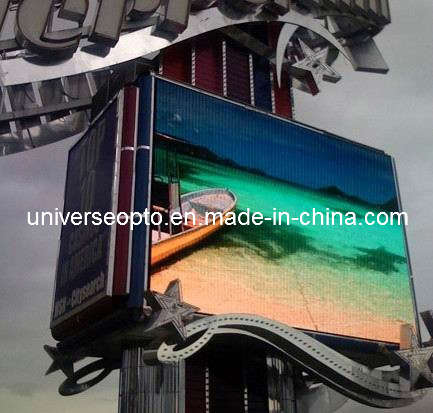

4) Outdoor LED display
5) High brightness LEDs and long lifespan.
6) Light weight and ultra thin
7) Good stability and good after-sale service.
8) Professional LED display sign Manufacturer.
9) LED sign LED sign display LED outdoor display LED video display LED display LED Video Sign LED Video Screen LED Video Display
|
Pixel Pitch |
20mm |
|
Pixel Density(dot/m² ) |
2500 |
|
Pixel Configuration |
2R1G1B |
|
Packaged Type of LED |
DIP546 |
|
Module Size(mm) |
320X160 |
|
Module Resolution |
16X8 |
|
Brightness(cd/m² ) |
6500 |
|
Max Power Consumption (w/m² ) |
700 |
|
Best Viewing Distance(m) |
20-60 |
|
Viewing Angle |
120° H/60° V |
|
Drive Mode |
Constant Current drive 1/4 scan
Constant Current drive Static State |
|
Driving |
Driving IC MBI5026GF |
|
Frame-change Frequency |
≥ 60 Hz/s |
|
Refresh Rate |
≥ 1000Hz/s |
|
Gray Grade Level |
4096 Grades |
|
Display Mode |
1024*768 |
|
Control System |
Synchronization Control |
|
Transmission Distance |
Reticle ≤ 100M; Multi-mode Fiber ≤ 500M
Single-mode Fiber ≤ 10000M |
|
Out of Control |
Rate ≤ 0.0001 |
|
Lifespan |
≥ 100000H |
|
Driving Power |
5V |
|
Working Voltage |
AC220V± 10% 47HZ~60hz |
|
Working Temperature |
-30 ° C ~+55 ° C |
|
Working Humidity |
5%RH~85%RH |
