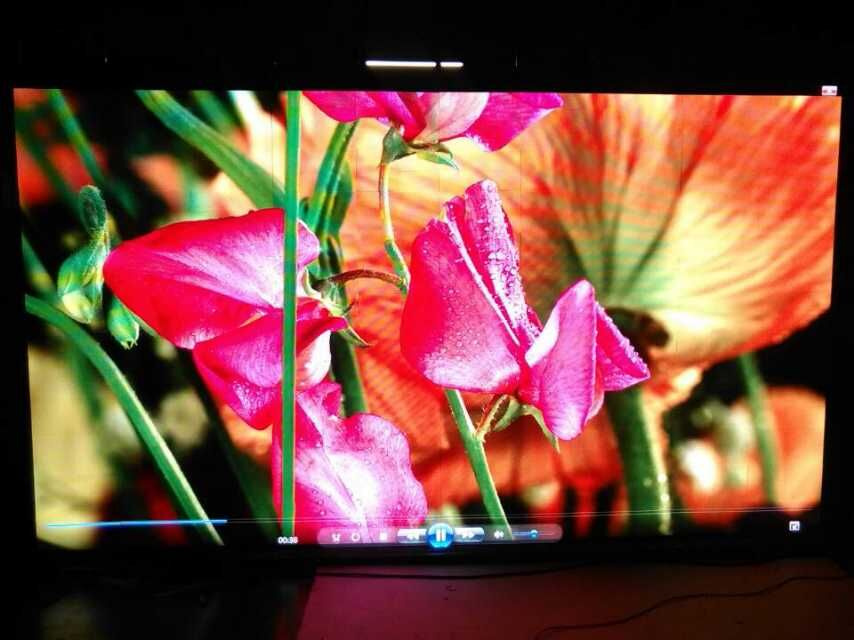

P2.5 HD Full Color LED Display
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
P2.5 Full Color LED Display
HOT-Promotion! ! ! P2.5 Full-Color indoor led display.
Following are the features for your reference.
1. 2.5mm real pitch, high definition;
2. More than 1500nits brightness
3. SMD2121 Black LED type.
| LED specification: |
| NO. | Color | Chip brand | Wavelength | View Angle | Place of origin |
| 1 | Red | Epistar | 625nm | 140°/140° | Taiwan |
| 2 | Green | Silan | 520nm | 140°/140° | China |
| 3 | Blue | Silan | 467nm | 140°/140° | China |
| Cabinet specification: |
| NO. | Item | Parameter |
| 1 | Model | UNW-IRP-P2.5 |
| 2 | Pixel pitch | 2.5mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | SMD2121 black |
| 5 | Module size | 160*80mm |
| 6 | Module resolution | 64*32 |
| 7 | Panel resolution | 192*192 |
| 8 | Cabinet size | 480*480mm |
| 9 | Density | 160000 Pixels/ |
| 10 | Brightness | 1500 NIT |
| 11 | Scan method | 1/16 |
| 12 | Best view distance | ≥3m |
| 13 | Max. power consumption | 200 W / tile |
| 14 | Ave. power consumption | 100 W / tile |
| 15 | Weight | 8.0 KG |
| 16 | Grey scale | 4096 |
| 17 | Colors | 68.7 billion |
| 18 | Refresh rate | ≥1000Hz |
| 19 | View angle | Horizontal: 140°, Vertical: 140° |
| 20 | Color temperature | 6500K |
| 21 | Frame frequency | ≥60Hz |
| 22 | Out of control pixel rate | <1/10000 |
| 23 | MTBF | >5000 hours |
| 24 | Lifespan | 100,000 hours |
| 25 | Control mode | Synchronous display with control PC by DVI |
| 26 | Working voltage | AC 100/200v 50-60Hz |
| 27 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| 28 | Operation temperature | -30 to +50 |
| 29 | Operation Humdity | 10% to 80% |
| 30 | Protection level | Indoor use only |
| 31 | Material | steel/aluminum/Extrude Aluminum/Die-casting |
| Prod Model: |
UN-P2.5-SMD 2121 black |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Pitch: |
2.5mm |
| Pixel Density: |
160000dots/M2 |
