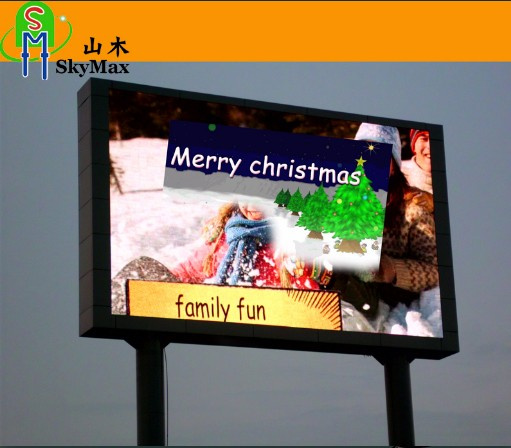

P16 outdoor full color LED display is specially designed for the outdoor HD shows; LED lamp adopts standard φ 4 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by red, green, blue color, the colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs\VCD or DVD\live programs, and so on.
P16 outdoor full color LED display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
Product feature:
The resolution that the display supports can be reached 1920X1080
Ultra high refresh frequency: Adopting the latest Smart-PWM technology and original brightness homogenization algorithm, which makes the LED display with ordinary general pure drive have ultra high refresh frequency (more than 4000Hz), eliminates the display's stroboscopic phenomenon, lets the shooting effect of the screen be irreproachable, and satisfies the demands of live broadcast.
The grayscale of the system can be reached 65536 levels
Supports receiving card-level intelligent online testing and fault error (optional function)
Systems support point-by-point brightness and chromaticity adjustment (optional function)
Each box's splicing uses the patent products: The adjustable slider ensures the screen body to be seamless.
The functions of the cabinet design with high protection grade are waterproof, dustproof, moisture proof, anti-corrosion, mildew proof, shockproof and anti-electromagnetism interference, and so on, it is applicable for various outdoor environments.
Adopts integrated circuit design, optimizes each electronic' space layout, goes through the strict EMI testing, which ensures the stability of the products.
Perfect display appearance, to meet the high-quality display effect, the mask has carried on the special design.
As high as 10.7 billion kinds of color performance ability, this ensures the high fidelity of image color.
| number | Item name | Parameter and index |
| unit module |
| 1 | LED encapsulation mode | φ 4oval DIP |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 60° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 16mm |
| 6 | Scan method | 1/2 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 16× 8 pixels |
| 9 | Module dimensions | 256mm× 128mm |
| 10 | Module type | incorporated lamp and drive |
| 11 | Module working voltage | +5V |
| 12 | Module average power | 5W |
| 13 | Module maximum power | 20W |
| 14 | Module shell material | PC |
| 15 | Module mask material | PC |
| unit cabinet |
| 1 | Module layout | 4× 6 pieces |
| 2 | Cabinet resolution | 64× 48 pixels |
| 3 | Cabinet maximum power | 600W |
| 4 | Cabinet average power | 150W |
| 5 | Cabinet dimension | 1024mm× 768mm |
| 6 | Cabinet material | steel/aluminum alloy |
| 7 | Cabinet color | black/gray |
| 8 | Protection grade (front/back) | IP65/IP54 |
| Entire screen |
| 1 | Application environment | outdoor |
| 2 | Brightness | > 8000 mcd |
| 3 | White balance coordinates | X=0.29, Y=0.31 |
| 4 | contrast | 64000: 1 |
| 5 | Color temperature | 8000K |
| 6 | Pixel density (pixels/m² ) | 3906 |
| 7 | Average consumption (W/m² ) | 191 |
| 8 | Maximum consumption (W/m² ) | 763 |
| 9 | Power source | AC220V/50HZ or AC110V/60HZ |
| 10 | Operating temperature | -20º C ~ +50º C |
| 11 | Operating humidity | 10% - 90% |
| 12 | Storage humidity | -30º C~ +50º C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 15-300m |
| 16 | grayscale/color | 16.7M |
| 17 | Brightness adjustment | 100 manual levels /100 auto levels |
| 18 | Control method | synchronous with the computer display |
| 19 | Data transfer range | Network c able: 100m |
| 20 | Computer operating system | WINDOWS (98, 2000, XP, Vista, 7) |
| 21 | Video signal | VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on. |
| 22 | MTBF | ≥ 10000 hours |
| 23 | Longevity | ≥ 100000 hours |
| 24 | Certification | UL/CE/CCC |
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.

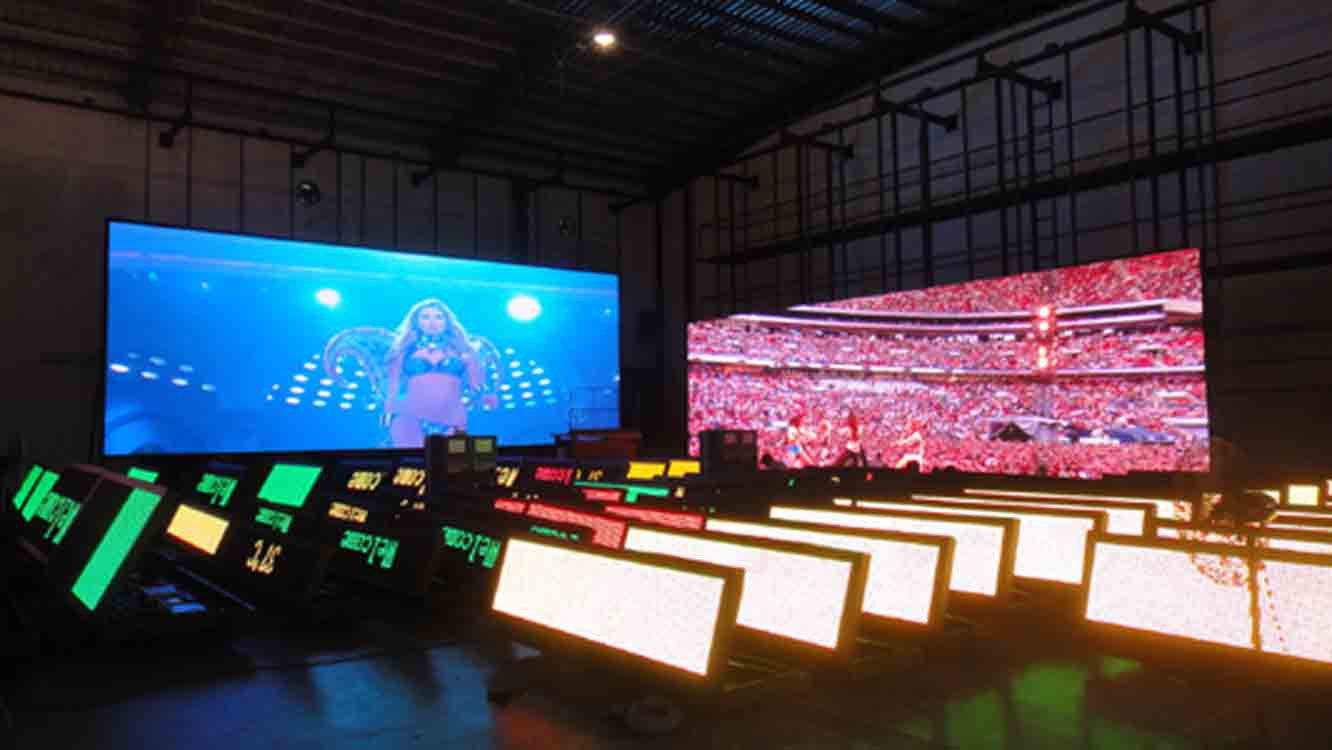

SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.

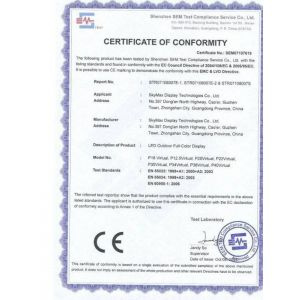

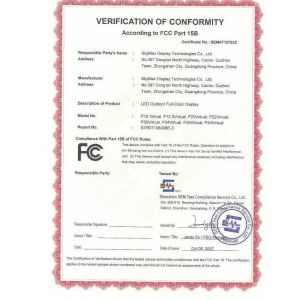

The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
