P16 RGB Outdoor Full Color LED Display
Application
Advertising LED display board, shopping mall LED display board for logo showing,
Bank &stock exchange LED outdoor display for rates showing, train & bus station, airport, school message board, telecommunication LED Screen board for information showing and instruction, Stage performance and so on.
Our advantage
1. Absolute OEM service: Providing the most suitable solution for you according to your different demands (such as
Quality, price and etc. ).
At least 3 different types in one material are provided for your choice, and with the lowest-cost custom service.
2. Powerful R&D ability: Excellent engineers are constantly developing new products and improving them.
3. Good quality: Stable performance about our led outdoor display
Features

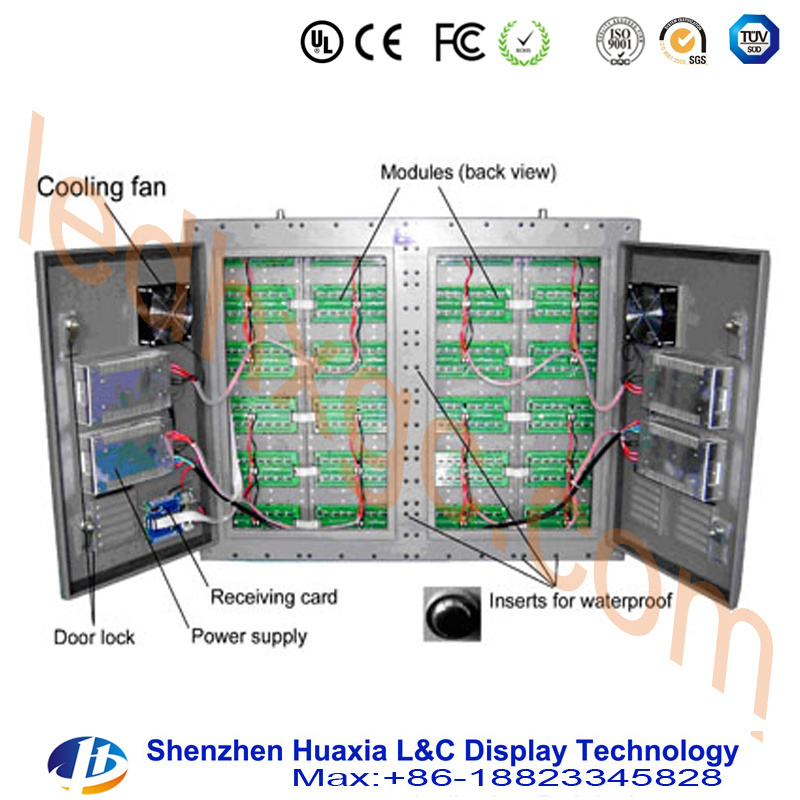

1. Cabinet inside with special handling design, add the Dust Resistor with filter pads. Avoding the dust inside.
2. Transparent rude made the led outdoor display more nice and the design more attractive.
3. Adjustable thermostat for controlling fans, keep the cabinet permanent temp.
More measures to improve the led outdoor display performance provide to you.
Awaiting your contact.
| Module:P16 | LED Type | DIP546 |
| Pixel Pitch | 10mm | Refresh frequency | 1,500Hz |
| Module size | 256mmx128mm | View Angle | 110 0 /75 0 |
| Module resolution | 16x8pixel | Working Environment | Temp:-20°C~60°C, Humidity:10%~90% |
| Dot density | 3906pixel/sq. m | Working Voltage | AC:100V~120V AC:220~240V |
| Pixel configuration | 2R1G1B | Lifetime | 100,000Hours |
| The best view distance | 10-100M | Gray Scale | 14bit/color |
| Cabinet dimension | 1024mmx768mm(Optional) | Color Display | 1.07Billion |
| Cabinet resolution | 64X48 | Brightness | ≥8000nit |
| Cabinet weight | 58KG/sq. m | MITBF | 0.00001 |
| Drive mode | Constant current,1/4 Scan | IP | IP65 |
| Max Power Consumption | 1000W/sq. m | Warranty | 2 year |
| LED Parameter | R:d(625-630nm) R:IV(400-450mcd) | G:d(522.5-525nm) G:IV(1800-2200mcd) | B:d(467.5-470nm) B:IV(350-400mcd) |
| Image adjustment | Brightness, contrast, tone, color range etc |
| Brightness uniformity | Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
| Effective control distance | Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km |
| Color Temperature/contrast | Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable |
| Input signal | RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION |
| Control system | Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional |
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
