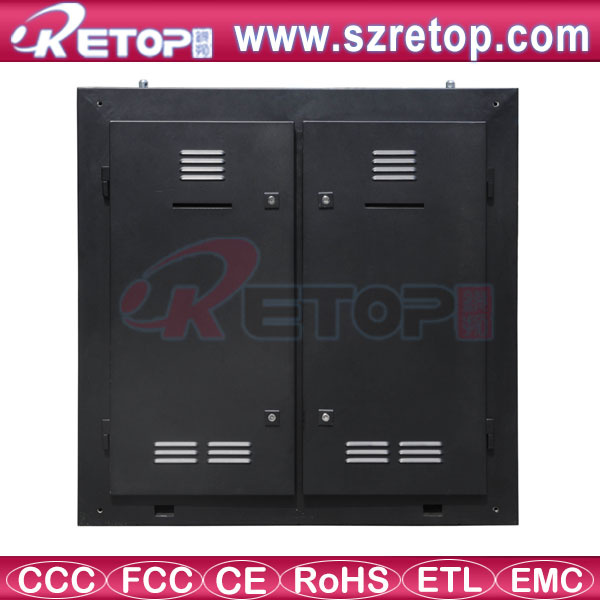

1. Attached pictures show our P16 outdoor billboard led display in China;
2. The brightness of our P16 outdoor billboard led display will be over 5000cd per sqm;
3. It is IP65 for the front side while IP43 for the rear side for our P16 outdoor led display;
4. The viewing angle for our P16 outdoor led display will be 140 both horizontally and vertically;
5. The life-span of our P16 outdoor led display will be over 100, 000 hours provided right operation.
|
Resolution |
16 mm |
|
LAMP |
LED Type |
SMD 3-in-1 |
|
Wave length |
R: 620 nm |
|
G: 524 nm |
|
B: 468 nm |
|
BOARD |
Pixel configuration |
1R1G1B |
|
LED driving method |
Static |
|
Pixels |
20 |
* |
20 |
(W*H) |
|
Pixel pitch |
16 |
mm |
|
Led board size |
320 |
mm |
* |
320 |
mm |
* |
25 |
mm |
(W*H*D) |
|
MODULE |
Led boards |
4 |
* |
3 |
(W*H) |
|
Pixels |
80 |
* |
60 |
(W*H) |
|
Module area |
1.23 |
m 2 |
|
Module size |
1280 |
mm |
* |
960 |
mm |
* |
210 |
mm |
(W*H*D) |
|
Net weight |
68 |
kg |
(aluminum) |
/ |
78 |
kg |
(ferrum) |
|
Power |
AC220/110 ± 10%, 47~63Hz |
|
Water proof |
Front IP65/ Rear IP43 |
|
Serviceability |
Rear service |
|
DISPLAY |
Max. power consumption |
R |
≤ |
980 |
W/m 2 |
N |
≤ |
780 |
W/m 2 |
C |
≤ |
860 |
W/m 2 |
|
Avg. power consumption |
≤ |
343 |
W/m 2 |
≤ |
273 |
W/m 2 |
≤ |
301 |
W/m 2 |
|
Max. current (208V 60Hz) |
≤ |
5.24 |
A/m 2 |
≤ |
4.17 |
A/m 2 |
≤ |
4.59 |
A/m 2 |
|
Hor. viewing angle(min 50% brightness) |
140° |
|
Vert. viewing angle(min 50% brightness) |
140° |
|
Brightness |
≥5000 cd/m 2 |
|
Pixel density |
3906 |
/m 2 |
|
Power factor |
>0.9 |
|
Contrast ratio |
6000:1 |
|
Operating temperature |
-20ºC to +50ºC |
|
Operating humidity |
20% to 90% |
|
Lifetime (50% brightness) |
100,000 hours |
|
Processing |
16 bit |
|
Colors |
281 trillion |
|
Refresh rate |
≥4200 Hz |
|
Frame rate |
60 fps |
|
Brightness level |
Manual 100 levels,automatically 16 levels. |
