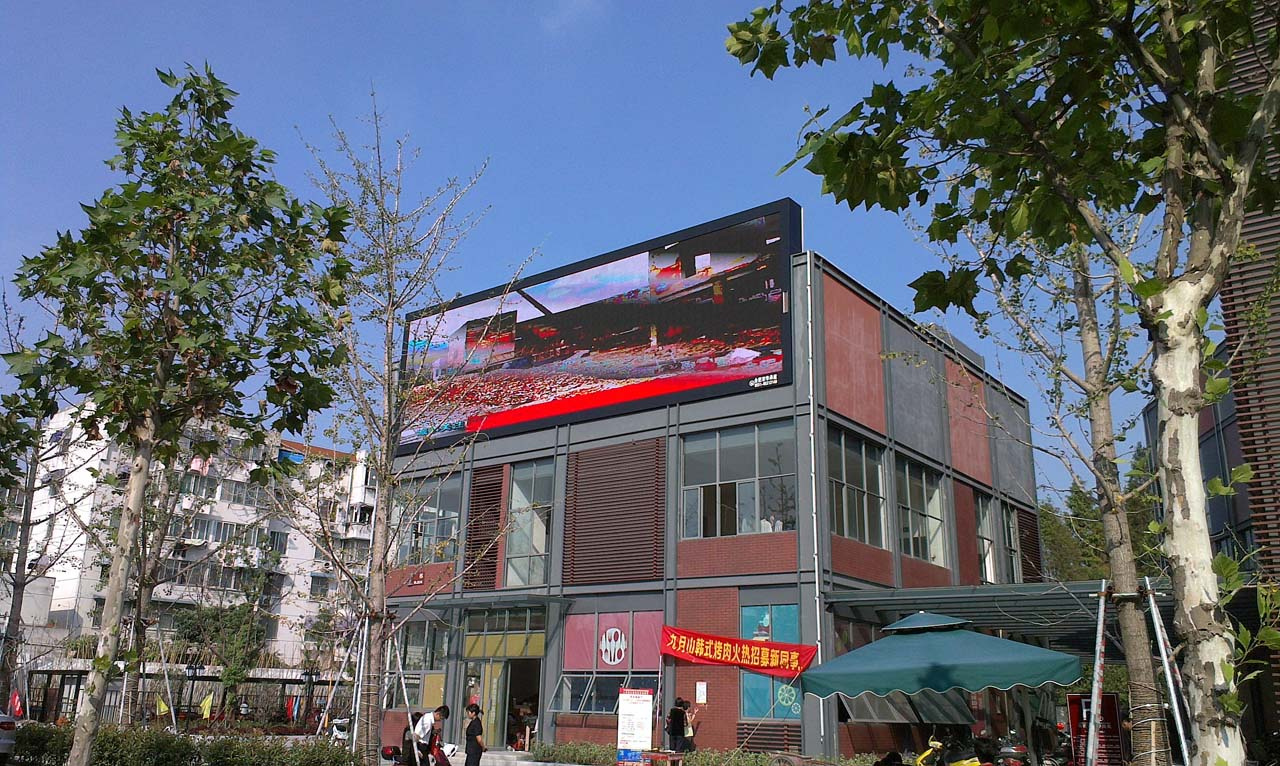

It can be widely used in a variety of outdoor.
As a high maturity conventional products on the market, excellent properties for our products.
Features:
1. Reasonable structure design, can be completes fast fixed installation.
2. After waterproof test all the cabinets can ensure waterproof properties.
3. The cabinet upper and lower with positioning holes and positioning column.
4. Independent rear cover and lock design, both moisture-proof, dustproof, and can facilitate fast debugging and maintenance cabinet.
5. The cabinet size:1024x768mm, pixel density: 3906dots/,brightness: ≥7500NIT, Is suitable for outdoor any occasion.
6. The led display is designed with high-quality lamps, even if under the intense sunlight, still be able to show a clear image and picture, were the outdoor advertising, the outdoor stadium, a large Plaza ideal choice.
Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
|
Item |
|
|
|
Model NO. |
P16 |
P20 |
|
Pixel Pitch |
16mm |
20mm |
|
Pixel Configuration |
1R1G1B |
1R1G1B |
|
LED Type |
DIP346 |
DIP346 |
|
Density |
3906 dots/m2 |
2500 dots/m2 |
|
Brightness |
>7500NIT |
>6500NIT |
|
Color Temperature |
6500-9500K |
6500-9500K |
|
Scan Method |
Static Scan |
Static Scan |
|
Cabinet Size |
1024x768x135mm |
640x640x140mm |
|
Module Resolution |
16x16 |
16x8 |
|
Cabinet Resolution |
64x48 |
32x32 |
|
Cabinet Weight |
43Kg/cabinet |
<43Kg/cabinet |
|
Max. Power Consumption |
900W/m2 |
1000W/m2 |
|
Ave. Power Consumption |
450W/m2 |
500W/M2 |
|
Best View Angle |
H:120 Degrees, V:45 degrees |
H:120 Degrees, V:120 Degrees |
|
Refresh Rate |
2000Hz |
>480Hz |
|
Gray Scale |
12-16bit |
12-16 bit |
|
Best View Distance |
>16m |
>20m |
|
Protection Level |
IP65 |
IP65 |
|
Cabinet Material |
Iron |
Iron |
|
Operation Voltage |
110-220V AC 50-60Hz |
110-220V AC 50-60Hz |
|
Working Temperature |
-20-+50 degrees celsius |
-20-+50 degrees celsius |
|
Working Humidity |
10%-90% |
10%-90% |
|
Signal Input Source |
VGA, DVI, HDMI, SDI, HD-SDI |
VGA, DVI, HDMI, SDI, HD-SDI |
|
Control Distance |
Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km |
Ethernet cable:100m, Multi-mode optical fiber:500m, singel mode optical fiber:20Km |
