P16 Highly Waterproof Outdoor LED Display
| Price: |
US $ 1000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |

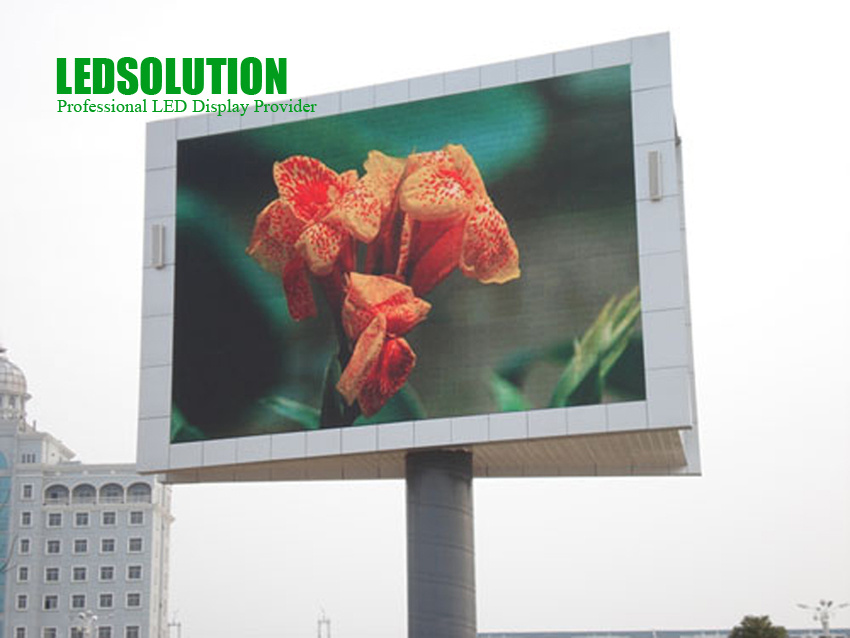

LEDSOLUTION Outdoor LED Display
The P16 outdoor LED Display of LEDSolution use state-of-art DIP LEDs, which has the brightness 6000 to 8000nit. The LED display has the advantage of excellent flatness, super uniform color, brightness and long viewing distance.
Features of outdoor LED Display:
*Weatherproof to IP65 standards
*High resolution images and long lifetime
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness over 6000 nits
| Parameter | Unit | Value |
| Pitch | mm | 16 |
| Brightness | nits | 6, 000 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle - Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 45 |
| Panel width | mm | 1, 024 |
| Panel height | mm | 768 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 0.7864 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 1, 1, 1 |
| Resolution per panel |
| 64x48 |
| Dot per panel |
| 3, 072 |
| Dot per sq. meter |
| 3, 906 |
| LED per sq. meter |
| 11,718 |
| Recommended minimum viewing distance | m | 12 |
| Recommended best viewing distance | m | 16~48 |
| Colors |
| 281 Trillion |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts /sq. m. | 610 |
| Input power (typical) | Watts /sq. m. | 244 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with 4pcs M10 bolts |
| Prod Model: |
LS-O-P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
1.024mx0.768m |
| Panel Resolution: |
64X48 |
| Display Color: |
281 Trillion |
| Protection Level: |
IP65/65 or IP65/43 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Density: |
3906 Dots/Sqm |
