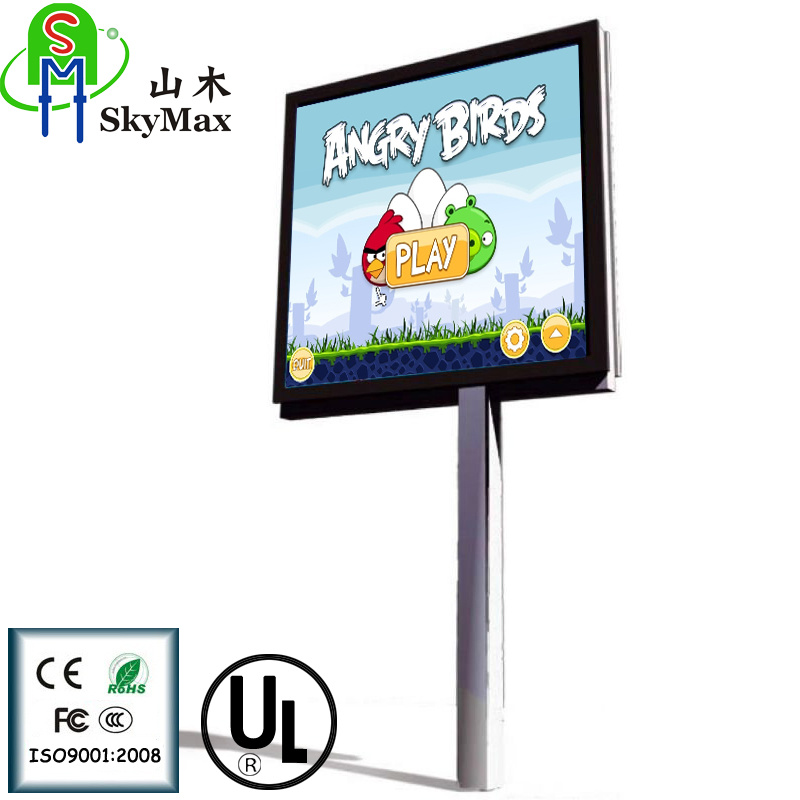

P16 Advertising Full Color Outdoor LED Display
| Price: |
Negotiable |
| Trade Terms: |
by Sea /by Air/Express Delivery:DHL, FEDEX |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
2011 China LED manufacturer plant
P16 LED Display:
1>Fast set-up, High refresh rate
2>Use imported PC of German Bell Co to design Module
3>Use USA LED Equipment
P16 outdoor virtual full color LED display is specially designed for the outdoor HD shows; LED lamp adopts standard φ 5 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by tow red, one green and one blue, which constitutes the virtual display effect; And the virtual resolution, is 4 times than that of the normal display. The colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs, VCD or DVD, live programs, and so on.
P16 outdoor virtual full color LED display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
number |
Item name |
Parameter and index |
unit module |
|
1 |
LED encapsulation mode |
φ 5 oval DIP |
|
2 |
Horizontal axis |
120° |
|
3 |
Vertical axis |
60° |
|
4 |
Pixel composition |
2R1G1B |
|
5 |
Pixel pitch |
16mm |
|
6 |
Virtual pixel pitch |
8mm |
unit cabinet |
|
1 |
Cabinet dimension |
1024mm× 768mm |
|
2 |
Cabinet material |
steel/aluminum alloy |
|
3 |
Cabinet color |
black/gray |
|
4 |
waterproof rating(front/black) |
IP65/IP54 |
Entire screen |
|
1 |
Brightness |
> 10000 cd/m 2 |
|
2 |
Operating temperature |
-20° C~ +50° C |
|
3 |
Operating humidity |
10%~90% |
|
4 |
Viewing distance |
15-300m |
|
5 |
Longevity |
≥ 100000 hours |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE/FCC/CCC/UL/RoHS |
| Usage: |
Outdoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video |
| Certification: |
CE |
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
