| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,FCA,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
Main feature:
Price lower than most factory
High brightness waterproof unti UV
Stable and strong steel cabinet

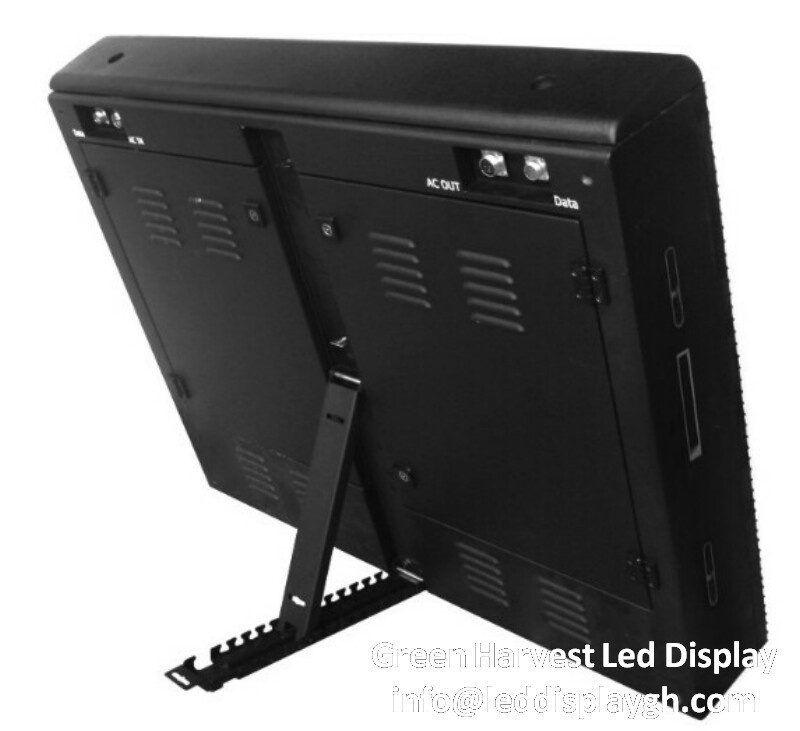

Easy to installation, special design back support

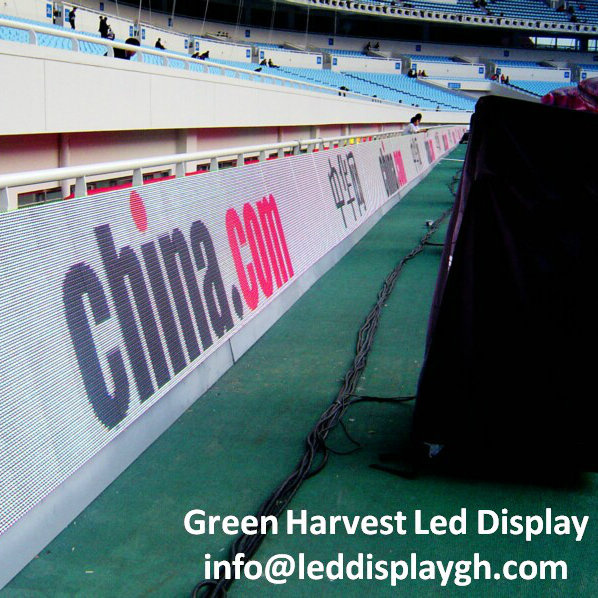

Suit to all indoor place: Basketball court, football field, tennis stadium, all sports place
Specification
| Type Name | SPB 10 | SPB 12 | SPB 16 | SPB 20 |
| Pixel Pitch | 10mm | 12mm | 16mm | 20mm |
| Pixel density(dot/m2) | 10000 | 6944 | 3906 | 2500 |
| Brightness (nits) | ≥7000 | ≥7000 | ≥7000 | ≥6500 |
| Drive Method | 1/4 | 1 | 1 | 1 |
| Refresh rate (HZ) | ≥1200 | |||
| Module size (mm) | 160x160 | 192x192 | 256x256 | 320x160 |
| Cabinet size (mm) | Customize, integer multiples of module size | |||
Cabinet material | Steel or Alumimium | |||
| Cabinet weight | 55kg/ | |||
Screen work Voltage (V) | 110~240V/AC | |||
Screen power consumption (W/) | Max 400 / Average 130 | Max 630 / Average 200 | Max 650 / Average 210 | Max 300 / Average 100 |
| Screen View angle | 120°/ 60° | |||
| IP Grade | IP65 | |||
| Operationg Temperature/Humidity | -20~50ºC 10~90% RH | |||
| Storage Temperature/Humidity | -40~60ºC 10~90% RH | |||
| Life Time | >50000H | |||
Standard Certification | CE CCC | CE CCC | CE CCC | CE CCC |
| Prod Model: | SPB series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Average Power Consumption: | 350W / m² |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | Static Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | CCC |
| Pixel Pitch: | 8mm 10mm 16mm 20mm |
