Features:
1. Lightweight and slim, depth in 88mm, 18.5kg/panel.
2. Both hanging-up installation and stacking installation are available. It can support 30 panels for the
Hanging lock, 300kg in total.
3. Neutrik Powercon True1 and Ethercon connectors make it reliable and fast connecting.
4. Rotatable hanging lock and manual safety button ensure its fast lock and avoid panels dropping off.
5. Die-casting aluminum frame ensure the flatness of the screen and seamless among panels.
6. High brightness with more than 4500NIT.
7. Water-proof with IP65, can be used indoor and outdoor.

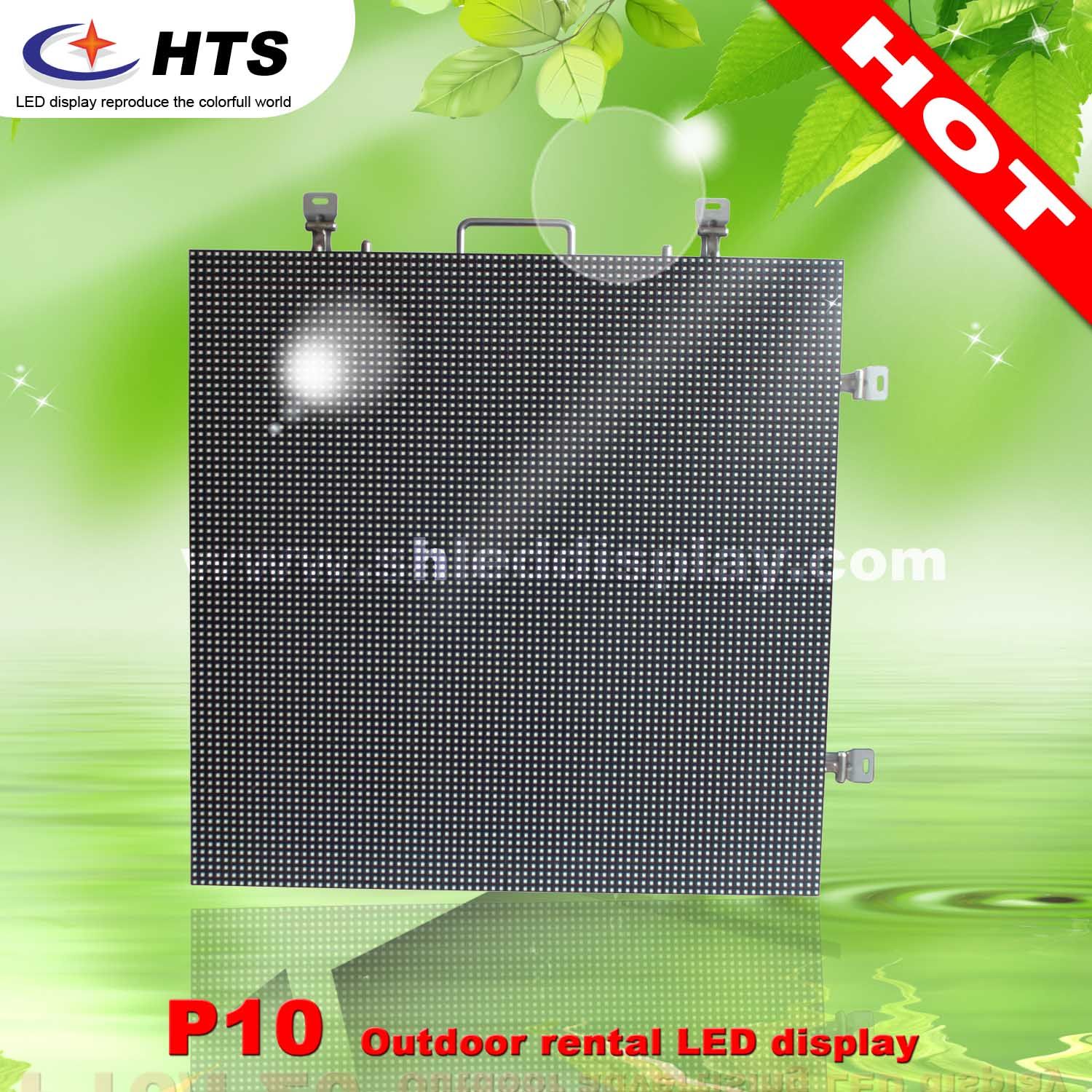

Photos
LED System Diagram
|
Model |
Specification |
|
Pixel pitch |
8mm |
10mm |
|
Pixel configuration |
1R1G1B |
1R1G1B |
|
LED type |
SMD3535 |
SMD3535 |
|
Module size |
320*320mm |
320*320mm |
|
Module resolution |
40*40 |
32*32 |
|
Cabinet resolution |
80*80 |
64*64 |
|
Cabinet size |
640*640mm |
640*640mm |
|
Density |
15625dots/m2 |
10000dots/m2 |
|
Brightness |
≥5000 NIT |
≥4500NIT |
|
Scan method |
1/5 |
1/4 |
|
Best view distance |
≥8m |
≥10m |
|
Max. power consumption |
700W/panel |
|
Ave. power consumption |
300W/panel |
|
Cabinet Weight |
18.5KG/PCS |
|
Grey scale |
65536 step |
|
Color |
281 billion |
|
Refresh rate |
≥ 960Hz |
|
Best view |
Vertical: 120°, Horizontal: 120° |
|
Color temp |
7500K |
|
Frame frequency |
60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110,AC220v ,AC100-240V /50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
IP65 front, IP54 rear |
