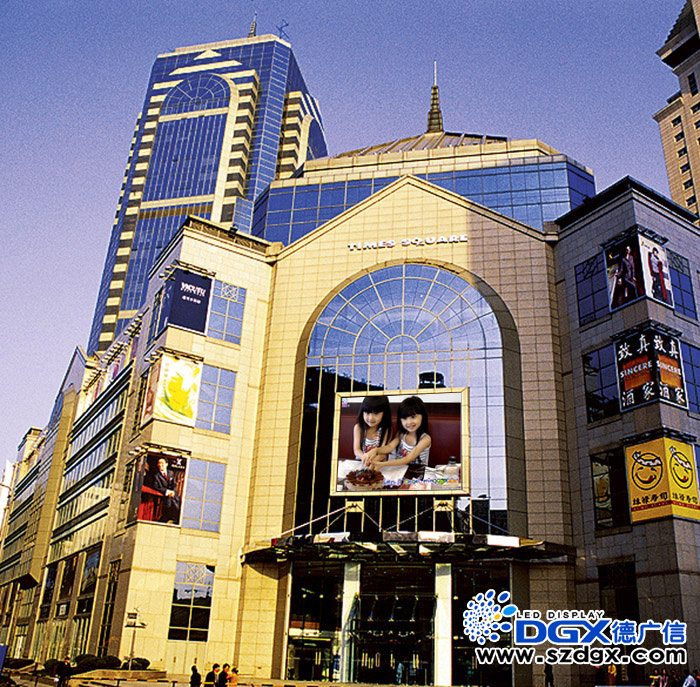

LED Display with 10mm Pitch
he Feature of DIP P10 LED Display Panel
1) brightness DIP > 7, 000 Nits, SMD LED > 5, 000 Nits are used for outdoor LED display, keep the content visible, even if facing the strong sunshine directly.
2) Anti-UV ray mask, the color of the mask would never change under exposure of UV ray.
3) Weatherproof design, completely outdoor use.
4) Easy for assembling and connection with the connector added.
5) High color uniformity and clear image can bring you a vivid audio visual effect.
6) Both front and rear access are available.
7) The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
If you have specific parameters and requirements for our LED display, customization is available.
|
Pixel pitch: 10mm |
|
Pixel density: 10, 000 dots/m² |
|
Brightness: >900CD/m² |
|
Viewing angle: Horizontal: 140o Vertical: 120o |
|
LED specification: SMD 0805 |
|
Pixel configuration: 1R1G1B |
|
Module size: 320 x 160mm |
|
Module pixel density: 32 x 16 dots |
|
Driving method: 1/8 scan |
|
Refresh rate: >400Hz |
|
Gray/color: 4096 grades gray and 16.7M colors |
|
Control system: Synchronous/off-line control system |
|
Working voltage: 110/220V AC |
|
Working temperature: -20 to 50oC |
|
Maximum power consumption: 700W/m2 |
|
Lifespan: >100, 000 hours |
|
MTBF: >5000 hours |
|
Dead DOT rate: <0.0001 |
|
LED parameters: R: λ D (625 - 630nm), G: λ D (522.5 - 525nm) and B: λ D (467.5 - 470nm) |
|
R: IV (180 - 200mcd), G: IV (330 - 360mcd) and B: IV (95 - 105mcd) |
|
|
|
If you have specific parameters and requirements for our LED display, customization is available. |
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.
Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.
DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.
DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.
DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.
DGX is famous for high quality, fast response after service.
DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
