Quick Detail:
1. 140°&140 wide viewing angle;
2. 1280×960 mm cabinet size;
3. 128×96 dots per cabinet;
4. Soft rubber protect.
Detail Description:
This type of P10 perimeter is composed with SND3535 LED chip, more than 6000 nits;
The support at the back is adjustable, to provide different viewing angle to audience;
Each cabinet is with size 1280 by 960 mm, about 80 kg/pc.
Application:

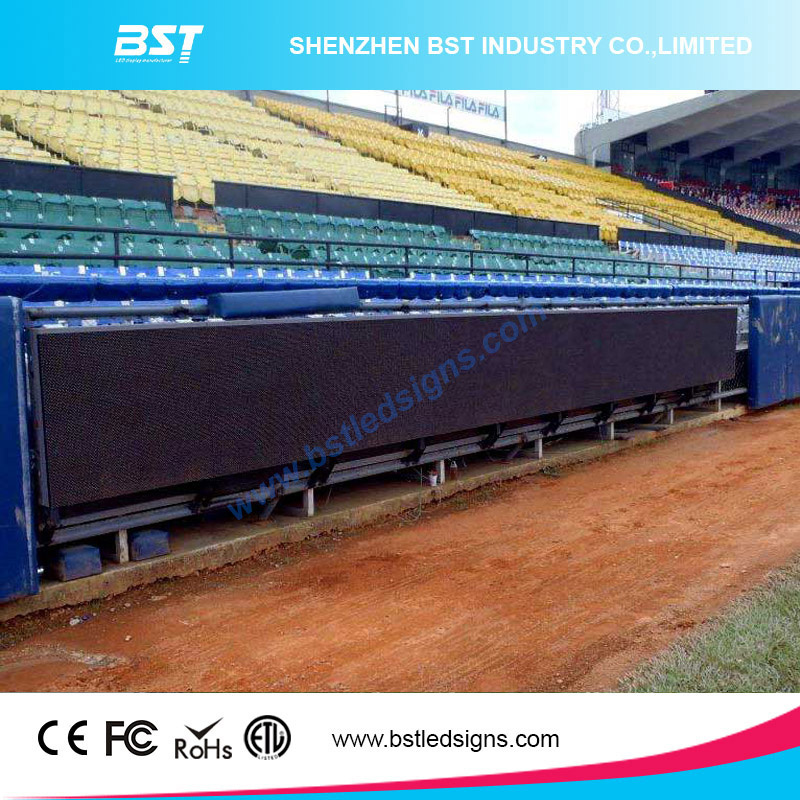

This perimeter LED display is installed around football or soccer stadium to play ads.
| Model | BST-ST-10 |
| Pixel Pitch | 10mm |
| Unit Size | 1280*960*187mm |
| LED Type | SMD3535 |
| Pixel / Unit | 128*96 |
| Unit Weight | 80kg |
| Viewing Angle(H/V) | 140°/140° |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level(Front/Rear) | IP65/IP54 |
| Power Consumption( AVG.) | 360W |
| Driving | 1/4 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Processing | 16bit |
| Max Brightness | >6000nits |
| Power Supply | AC 110/220±10%, 50~60Hz |
| MTBF | ≥ 1000 Hours |
| Life Span | ≥ 50000 Hours |
| Pixel Failure | < 0.0003 |
