P10 Outdoor Full Color LED Display (LED Display Screen)
| Price: |
US $ 1135/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Product DetailsBasic Info.Model NO.: P10
Display Type: Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 10mm
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: CE, RoHS
Pixel Density: 10000 dot / m²
Average Power Consumption: 600W / m²
Pixels Pitch: 10mm
Configuration: 1R1G1B
Work Method:
1/4Pixel LED:DIP 346
Driving IC:
MBI5024Density: 10000dots/M2
White Balance Luminance:
≥ 9000CD/M2Export Markets: Global
Additional Info.Trademark: NICK
Packing: Wooden Case or Fly Case
Standard: PH10mm
Origin: Shenzhen
Production Capacity: 5000 Sqm Per Month
Product Description*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 9000 nits onwards
NICK full color outdoor led electronic display has many advantages as following:1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity.
5. Extra-high Brightness.
6. The LED display screen is comprised by the cabinet.
7. The LED Display cabinet has a fixed size(standard size).
8. We can expand the size of the LED display according to our requirement based on the cabinet size.
9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
10. Having good lightening accordance and no mosaic.
11. Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
13. Good heat emission capability.
14. Environmental-friendly.
15. We can offer high quality outdoor led display, indoor led display, led screen, led sign, led advertising display, led electronic display, led display,led screen,led module,led sign,led clock,outdoor full color led display,led billboard,led display screen,led panel,led display panel,led,display,outdoor led display,led display board,p10 led module,led board,led outdoor display,led display module,led display outdoor,display board,sign board,scoreboard,billboard,advertising display,football,led curtain,advertising,led video wall,car video,led controller,led signs,p10,taxi led advertising,7 segment display,color tv,hd led display,sign,led pixel 12mm,digital display,display screen,led module display,led sign board,led tv display,and so on.Certifications of NICK

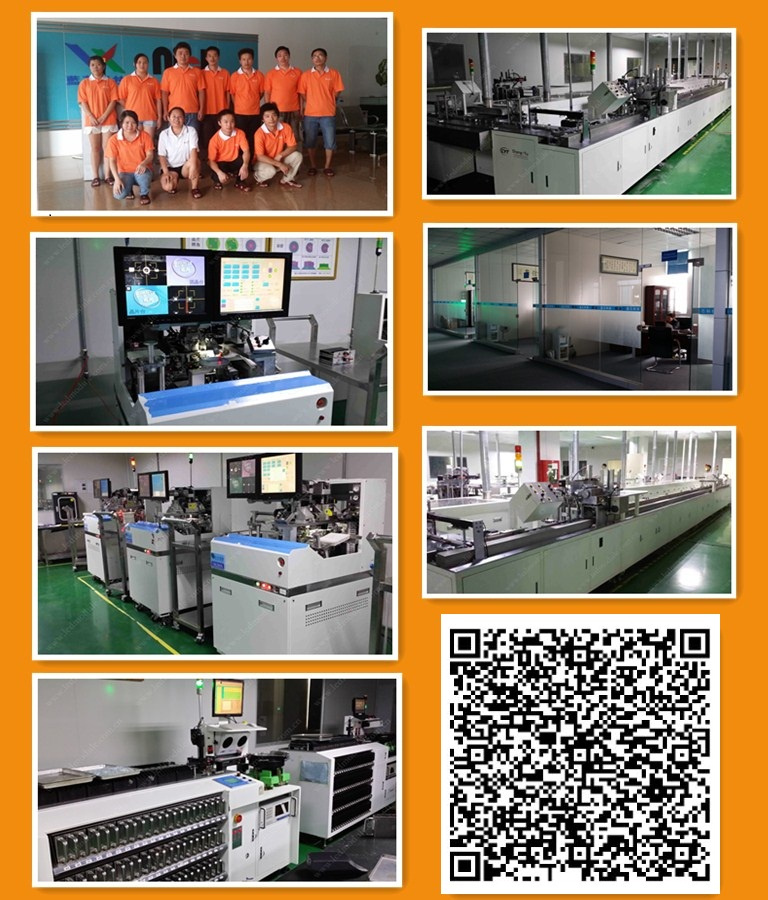

Work Shop of NICK

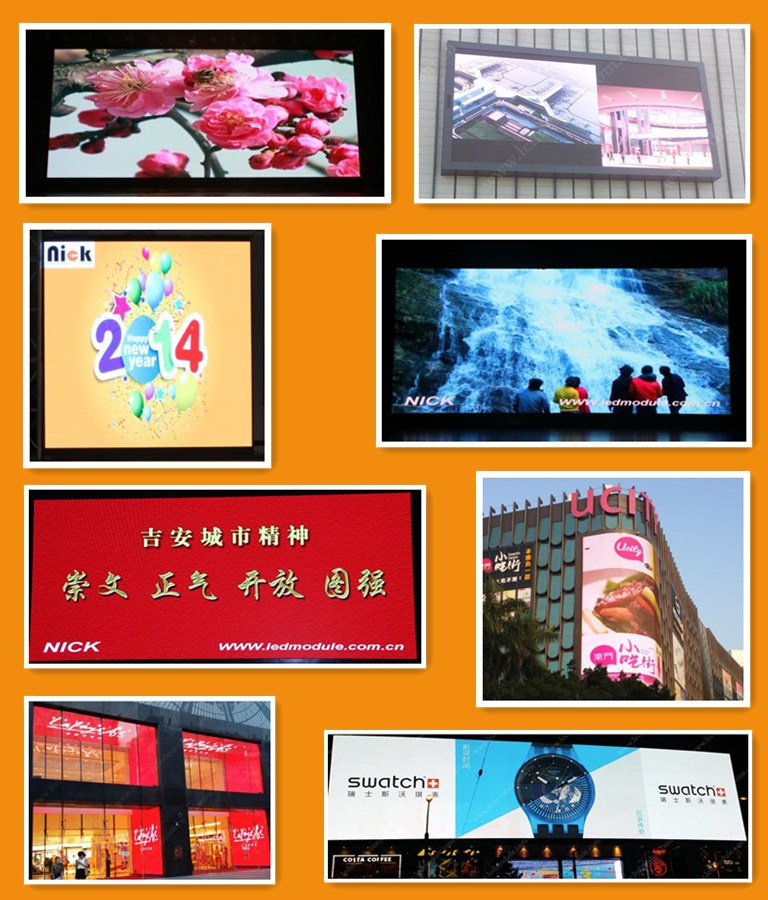

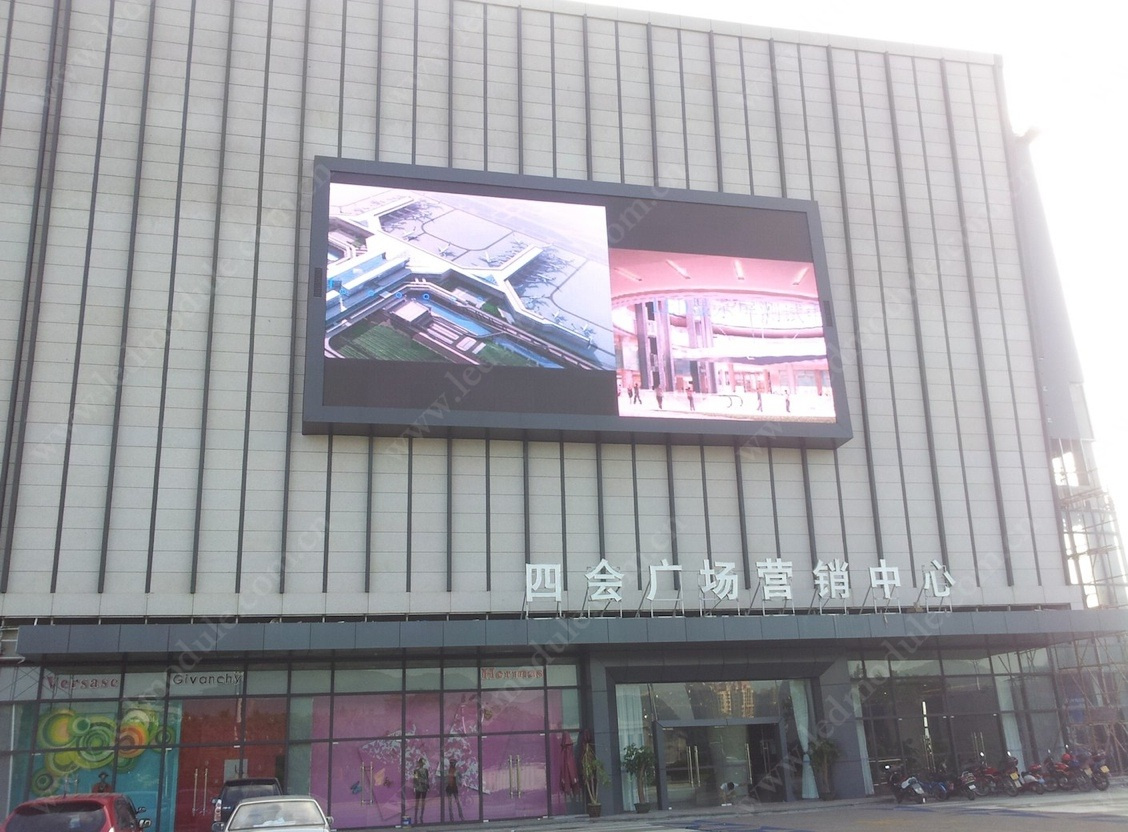

NICK Full Color Outdoor LED Display
|
SMD P10 Outdoor Full Color LED Display (DIP 320mm*320mm) |
|
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1. |
|
Pixel |
Item |
Parameter |
|
Real Pixel pitch |
10mm |
|
Pixel composition |
1 red, 1 green and 1 blue LED |
|
Module |
Module resolution |
32 x32 =1024pixels |
|
Module size |
320mm x320mm |
|
Cabinet |
Cabinet size |
960mm x960mm x 120mm |
|
Cabinet resolution |
Real pixel: 9216pixels |
|
Cabinet materials |
Cold rolled steel (mixed Iron & steel) |
|
Screen |
Physical Resolution /sqm |
10000pixels/sqm |
|
Brightness |
≥ 9000cd/sqm |
|
Brightness adjustment |
256 level automatically |
|
Scanning method |
1/4scan & physical pixel |
|
Drive methods |
Constant current drive |
|
Best Viewing angle |
Horizontal: 110 degrees, vertical: 110 degrees, |
|
Grey scale |
65536 levels |
|
Color processing |
16bit |
|
Display colors |
4.4trillion |
|
Contrast ratio |
2000: 1 |
|
Frame rate |
> 60 frames/sec |
|
Refresh rate |
300-3000HZ(no flickers whilecamcorder recording) |
|
Control method |
Synchronized with computer monitor |
|
Lifetime |
> 100, 000 hours |
|
Defects rate |
≤ 0.0001 |
|
Operating voltage |
AC220V± 15% , 50/60HZ |
|
Screen power consumption |
Max: 1125w/sqm; Average: 600w/sqm |
|
Color temperature |
6500K± 500 |
|
Control distance. |
100 m(no repeating) by net line; Optical fiber: 500m- 10km |
|
IP level |
IP65 in the front, IP54 at the back |
|
Operating temperature |
_ 20degree--+60degree |
|
Operating ambient humidity |
10%_ 95%RH |
| Prod Model: |
NK-P10-DIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
320mm*320mm (DIP) |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/2 Scan |
| Certification: |
RoHS |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
600W / m² |
What is Nick meaning?
Nick name from the RED LED inventor Nick Holonyak Jr, he is not only one research scholar, but also one moral sense scientist, cultivate many electronics talents, promote and facilitate LED industry development, as one beneficiary of this invention and responsible enterprise, Nick Optoelectronics company will continue following the LED way to push forward LED application industry development, let more and more family using energy saving LED lighting, keep the green earth!
Why you choose Nick,
Shenzhen Nick Optoelectronic Technology Co., Ltd established in August 2008 year, consist of one experienced professionals and strong executive team, among our core technicians average LED trade research and production experience more than 15years, speciality and quality is our development foundation, we are the first factory to put forward wholesale LED materials to the world, "Nick for you saving every penny! " is our company motto, high cost performance is our product target, we give more profit shares to distributors and end users, to implement our win-win value, we welcome tailor made LED products, we can design and produce according to customers' Requirements, at the same time, after long time cooperation and good reputation, Nick with many suppliers together formed one excellent and mature supply chain, fully practice resource sharing, complementary advantage, efficient operation spirit among modern enterprises.
Nick Products oriented LED Display and LED Display Modules, LED Display wholesale, one color/two color/RGB color LED Display modules wholesale, Message LED signs wholesale, LED Controller wholesale etc, with high power efficiency, long life, stability, energy saving, splendid, colorful, environment friendly, widely application features and high cost performance, are more and more popular with Customers both domestic and overseas market.
Nick LED Products can be used indoor and outdoor, advertising and daily life, family party and big events celebration different occasions for different themes, now our products has been exported to different countries, such as Korea, Indonesia, Malaysia, Thailand, Japan, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Belgian, Finland, France, Portugal, Poland, Romania, Spain, USA, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
ISO9001, ISO14000, TS16949 international quality control system
Nick target is to offer high cost performance LED products to customers, so during material purchasing stage, product-making stage, product finished stage, all is to be controlled under
IQC, IPQC, FQC respectively, we strictly follow ISO9001, ISO14000, TS16949 international management rules to guide production, and tested by special tools such as low-high temperature transmit instrument, integrating sphere instrument, LED spectrophotocolormeter instrument, all have to be tested and aging 48hours in high temperature, after products finished, also have to be aging 48hours again in high temperature, most our products have CE, RoHS, FCC Certificates,
Strong and fast after service
Fast, efficient, convenient is Nick after service team target, from online communication or telephone to provide solution fast within one day, our after service line is open 24hoursx7days, at the same time, our experienced technical experts will provide strong support to customers,
As one responsible enterprise, Nick consistently stick to benefit people with green energy, welcome you to enjoy this warm with us together!
