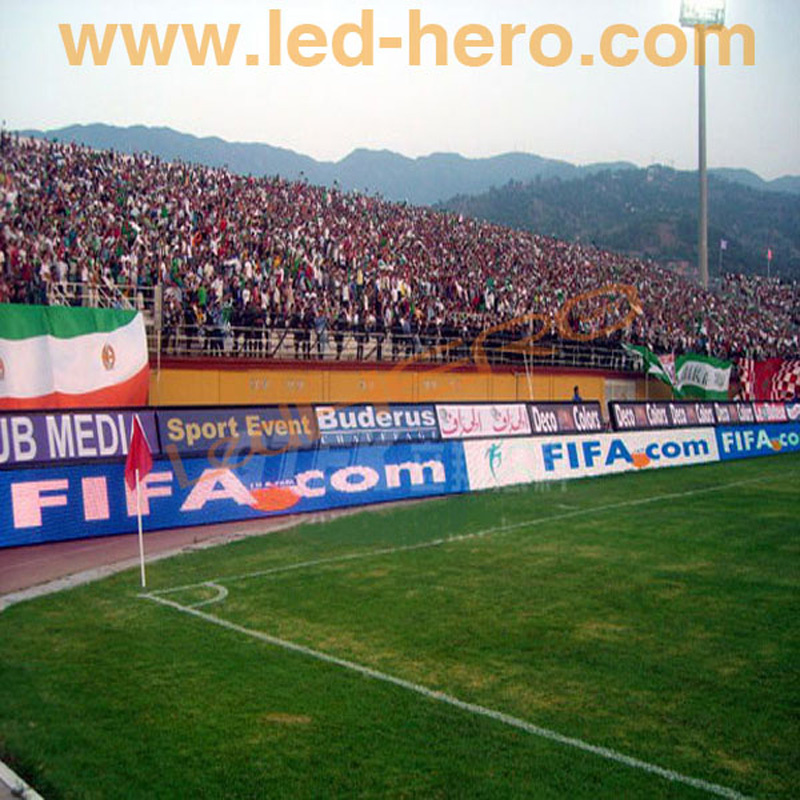

P10 Outdoor football Stadium LED Display/ P10 soccer sport led dispaly
specification:
Part Number |
HERO-IDS4F-8S |
Resolution | 16(H)×16(V) |
Pixel Pitch |
10mm |
LED Configuration |
1R1G1B |
Pixel Density |
1,0000 pixels/ m2 |
Module Size |
160*160mm |
Driving IC |
MBI5024 |
Driving Method |
1/4 Scan |
Cabinet Weight |
63kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings |
Brightness |
>1,800cd/ m2 |
View Angle |
110°/70° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption |
750W/ m2 |
Average Power Consumption |
370W/ m2 |
Control System |
Control Mode |
Synchronous |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
5000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
P10 Outdoor football Stadium LED Display/ P10 soccer sport led dispaly
About Hero
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
If you are interested in P10 outdoor football stadium led display or other led display,feel free to contact me.My / mobile:+86-15270942542.
P10 Outdoor football Stadium LED Display/ P10 soccer sport led dispaly
Our alibaba website is: http://led-hero.en.alibaba.com
Office website: http://www.led-hero.com
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
