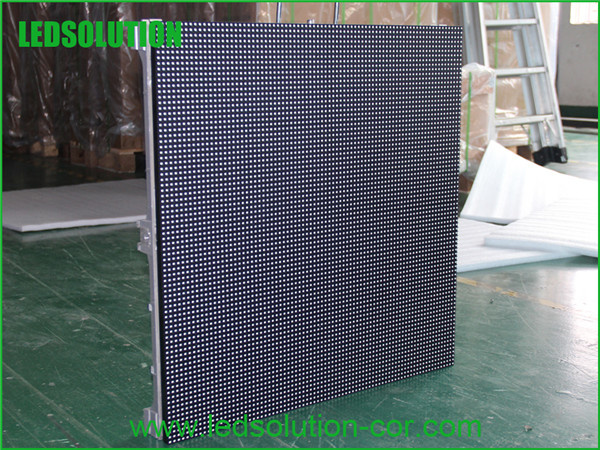

P10 Outdoor Die-Cast LED Display
| Price: |
US $ 1000-2000/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
Features:
1. Light weight only 15kg/panel;
2. Low noise design;
3. Slim type with thickness only 80mm;
4. Easy assembly without any tools, agile installation for hanging or ground installation;
5. IP65/54 for outdoor application.
Parameter
| Unit
| Value
|
Pitch
| mm
| 10
|
Brightness
| nits
| 6,000
|
Color temperature
| deg. K
| 6,500
|
Viewing angle - Horizontal (50% brightness)
| deg.
| 140(-70 ~ +70)
|
Viewing angle - Vertical (50% brightness)
| deg.
| 140(-70 ~ +70)
|
Panel weight
| kg
| 15
|
Panel width
| mm
| 640
|
Panel height
| mm
| 640
|
Panel depth
| mm
| 80
|
Panel area
| sq. m.
| 0.4096
|
Panel material
|
| Epoxy paint coated Aluminum
|
Panel Mode
|
| Die-Cast rental
|
Operating temperature range
| deg. C
| -30 to +60
|
Humidity operating
| RH
| 10% ~ 90%
|
Pixel type and configuration
| R/G/B
| 346 1R1G1B
|
Resolution per panel
|
| 64x64
|
Dot per panel
|
| 4,096
|
Dot per sq. meter
|
| 10,000
|
LED per sq. meter
|
| 30,000
|
Recommended minimum viewing distance
| m
| 7.6
|
Recommended best viewing distance
| m
| 10~30
|
Colors
|
| 281 Trillion
|
Grey scale (linear)
| Levels
| 65,536
|
Brightness control
| Levels
| 256
|
Contrast ratio
|
| 1,000:1
|
Processing depth
| bit
| 16
|
Video frame rate
| Hertz
| 60
|
Display refresh rate
| Hertz
| 180~3,000
|
Input voltage (nominal)
| VAC
| 110 to 240
|
Input power frequency
| Hertz
| 50 to 60
|
Input power (max)
| Watts / panel.
| 300
|
Input power (typical)
| Watts / panel.
| 240
|
Lifetime (50% brightness)
| Hours
| ≥100,000
|
Red wavelength (dominant)
| nm
| 620~625
|
Green wavelength (dominant)
| nm
| 520~525
|
Blue wavelength (dominant)
| nm
| 470~475
|
Multimedia data format
|
| DVI,MPG,AVI,WMV,RM etc.
|
Data interconnection
|
| UTP Cat 5/Optical Fiber
|
Mounting system
|
| Hanging / Fixed
|
| Prod Model: |
LS-DO-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Certification: |
RoHS |
