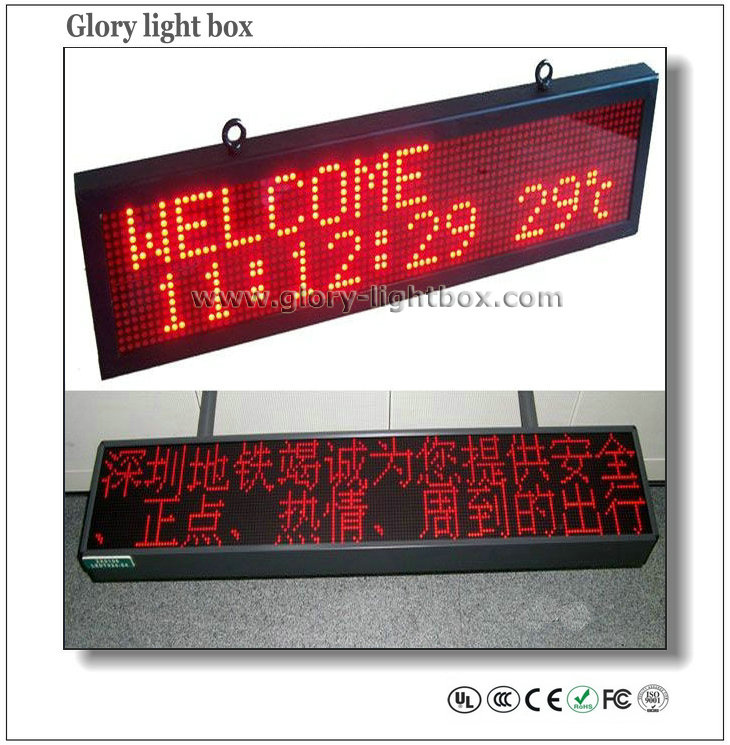

Product: P10 LED display/High definition LED display advertising screen/ waterproof large size LED display screen/indoor full color LED display screen/Excellent resolution P16 outdoor electronic LED display screen
Specification:
1)Size: OFP10, OFP12, OFP12.5, OFP16, OFP20, OFP25, OFP31.25 etc
2)Quality: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability
3)Display: Mounted inside wall, fixed on the grond, Hanged-up, supported by two pillars, mounted onto wall, supported by one pillar
4)Package: Babble inside, wooden case outside
5)Delivery time: 15-20 business days after deposit
6)Guarantee: 2 years
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m2 |
| Pixel configuration | 2R1G1B |
| Led specification | 346 DIP |
| Pixel resolution | W: 16dots*H: 8dots |
| Cabinet | Dimension | 1024mm*768mm*185mm |
| Quantity of module | 24pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 50kg |
| Best viewing angle | 16-300m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-320W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 1800cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
|
| Software | LED studio |
Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.
We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...
Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.
Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, such as Coca cola, Guinness, Budweiser, Pepsi, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !
Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
