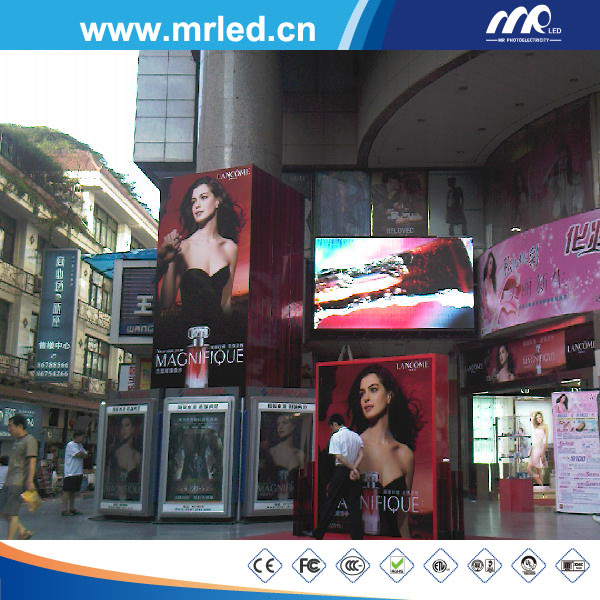

P10 LED Display Outdoor for Advertising
| Price: |
US $ 500-30000/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
Function and Technology Character:
Light weight, ultra-slim & fashionable design, good for rental business.
Excellent heat radiating and superior waterproof design.
Special Fast lock enable the user to assemble and disassemble each cabinets.
Suoer flux LED lamp integrates the advantages of SMD LED lamp's wide viewing angle and DIP LED lamp's good elimination of heat, it is a brave and brilliant technological innovation for MR LED to use Super Flux LED display in outdoor to bring more benefits to users.
Standard cabinet size L480mm*L480mm and Standard module size L240mm*H240mm, users can update P10 led display to p4, p5, P6 LED displays without changing the cabinets, save cost for users.
Optional Install modes, hoisting or fixing installation, both are OK.
Standardized production for Cabinet and 6-in-1 packing flight case. Shorten the delivery time for customers.
|
Item |
Parameter |
Item |
Parameter |
|
Pixel Pitch(mm) |
10mm |
Red wavelength |
625nm±5nm |
|
Resolution(W×H) |
10000dots/m 2 |
Green wavelength |
525nm±2.5nm |
|
Pixel Configuration |
1Red, 1Green, 1Blue |
Blue wavelength |
475nm±2.5nm |
|
Module dimension |
W320mmxH160mm |
optimum viewing distance |
10m |
|
Module Resolution(W×H) |
32dots×16dots |
Working environment |
Temp:-20~+60 Humidity:10%~90% |
|
Cabinet dimension |
W1280mmxH960mm |
Life time |
100000 hours |
|
Cabinet resolution |
W128dotsxH96dots |
Gray scale |
10bit/color |
|
Cabinet weight |
50kg /m 2 |
Color display |
1.07 billion |
|
Max power W/m 2 |
600W/m 2 |
Blind LED |
< 0.00001 |
|
lamp rate |
|
|
|
Drive mode |
Constant current |
Waterproof class |
None |
|
1/8 scan |
|
|
|
Cabinet Material |
Steel/Aluminum |
Warranty |
2 Year |
|
LED assembly type |
SMD 3in 1 |
MTBF |
5000hours |
|
Refresh frequency |
≥480 HZ |
Input voltage |
AC110/AC220 |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Function: |
Video Display |
| IP Rating: |
IP65 |
| Scanning Mode: |
1/8 Scan |
| Certification: |
Rosh |
| System Operating Platform: |
WIN XP |
| Pixel Pitch: |
10mm |
| Pixel Density: |
10000 dots/m² |
| Pixel Configuration: |
1R,1G,1B |
| Brightness: |
6000 |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
