Home LED Light Products P10 Full Color Outdoor LED Display

P10 Full Color Outdoor LED Display

P10 Full Color Outdoor LED Display
Price: US $ 615-1000/Square Meter
Trade Terms: FOB,CFR,EXW
Min Order: 3/Square Meter
Pay Type: T/T,Western Union

Outdoor full color LED Display: Perfect vivid image, super brightness, long life span and stable work, waterproof, support any format of video etc. LED Display Cabinet design for easy install and dismantle. ISO&CE certificates, best quality, best price.


Why choose Guangzhou Qichuang Electronic & Technology Co., Ltd.


Main features:

1), Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system and play a variety of information likevideo, word, flash, music, clock, graph etc.
2), High brightness and support brightness automatically adjustment.
3), Long lifespan, can reach more than 100, 000 hours, while the power consumption is lower than one tenth of lamp or neon;
4), Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5), Rich outdoor full color LED display screen engineering experience both in domestic and international market.

1.        Item No.P10 led display
2.        LED chipTaiwan/Silan/Cree/Nichia
3.        Physical Pixel Pitch10mm
4.        Physical Pixel Density10000dots/m 2
5.        Pixel composition1Red, 1Green,1Blue
6.        Moduel Size160*160mm
7.        Moduel resolution16*16dots
8.        Cabinet thickness175mm
9.        Bracket of cabinetEasy to install and dismantle
10.     Brightness≥ 7000cd/m 2
11.     Colors16.7million
12.     Viewing angleHorizontal 120°-140°,   Vertical  90°
13.     Viewing distance5m -200m
14.     Soft Rubber MaskTo protect player and LED display itself .
15.     Scan frequency≥1500 Hz
There will be one receive card in each cabinet  ,so that the LED display won't sparked. Also it is very easy to move and connect
16.     Video Frame Rate≥150 fps
17.     Color temperature6500°K to 9500°K adjustable
18.     Control methodsynchronous control by PC
19.     Life span( half brightness)≥100,000 hours
20.     Weight55Kg/sqm
21.     IP rateIP65/IP54
22.     Average power consumption400W/sqm
23.     Peak power consumption1200W/sqm
24.     Input voltageAC220V/50Hz ±10%    or  AC110V/60Hz ±10%  or AC380V/60Hz ±10%
25.     Operating EnvironmentTemperature:-20 - +60      Humidity:10%-95%RH
26.     Operating systemWindows Serials
27.     Type of video signalS-video, composite video ,RGB ,VGA ,DVI

Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC
Average Power Consumption: 400W/Sqm
Guangzhou Qichuang Electronic & Technology Co., Ltd. locate in Guangzhou, China, found in 2003. It is a professional manufacturerer of LED displays screen, and the CEO of Qichuang is a skillful LED display expert before he established the company.

Qichuang Technology specializes in all types of LED display screen, including indoor and outdoor LED displays, single color, dual colors, RGB full-color displays. As one of the professional LED Displays manufacturers of China, we combine products producing, technology support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.

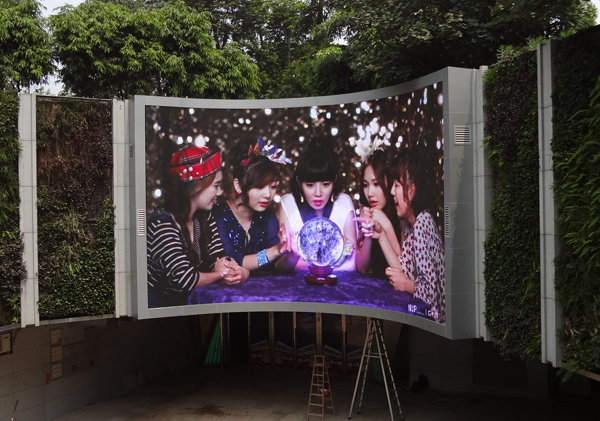

LED displays from our company have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, gymnasium and so on. They play an important role for enterprises' spreading and service convenience, and become very popular in every corner of the world.

Technical traits of LED displays:
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system and play a variety of information like video, word, flash, music, clock, graph etc. Easy to install and dismantle.

Our Commitments: First-class quality, excellent technology support, best after-sales service.
